Enorossi 10 wheel hay rake with center kicker wheel
For Sale: Enorossi 10 wheel hay rake with center kicker wheel
Subject Enorossi 10 wheel hay rake with center kicker wheel
Ad is submitted by poster:
Brand New 10 Wheel Enrossi, Enorossi Hay Rake.

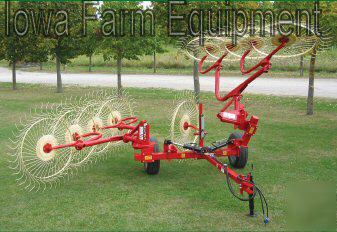

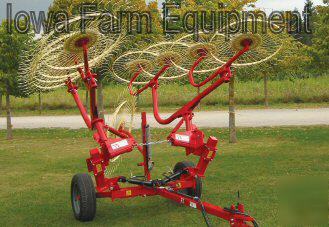

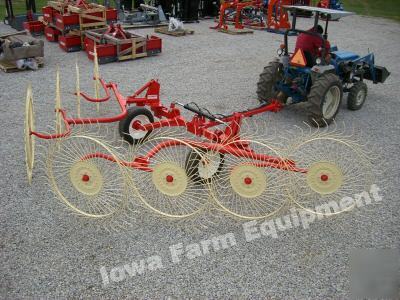

Photos are Obviously of an 8 Wheel Rake. Photos of the 10 Wheel Rake are Coming Soon!
This 10 Wheel Rake Listing INCLUDES the Center Kicker Wheel as Shown in Photos. Since this 10 Wheel Rake will Turn Three Wind Rows, the Center Wind Row Won't get Turned Without the Center Kicker Wheel, so we Strongly Suggest Purchasing the Center Kicker Wheel with 10 & 12 Wheel Rakes!
* Requires only One Set of Hydraulic Outlets for Operation.
* This Rake Has a Two Cylinders that can be Operated Similtaneously.
* Plus, each side has an Isolation Ball Valve to Accommodate Independant Operation of Either Side.
* Elapsed Time to Lower or Lift Both Sides of this Rake is 2 to 5 seconds (subject to Tractors Hydraulics).
* Though the Lower & Lifting Functions are Rapid, this Rake has been Engineered & Built to Provide Very Smooth Hydraulic Lowering & Lifting Operation.
* Each Side has Dual Spring Suspension to Provide Minimum Ground Contact of the Teeth while Providing a "Float" to Accommodate Raking Hay on uneven Terrain.
* Spring Tension is Adjustable.
* Each Spring is 1/4" X 12".
* Rake can be Adjusted to make 3' to 5' Wind Rows.
* Raking Angle is also Adjustable.
* Rake Wheels are Ground Driven.
* Includes 1/4" Diameter Chain Latch for Transportation Position.
* Rake has been Engineered to provide Excellent Overall Balance in the Transport Position.
* Tongue Hitch is Adjustable to Accommodate Various Drawbar Heights.
* Of course, there are Grease Fittings at all of the Wheel Hubs.
* Requires a Tractor with Minimum of 30HP.
* Tongue Length (from Axle Front to Hitch Pin) is 7'-0".
* Total Width of Rear Axle Transport (Sidewall to Sidewall of Tires) is 6'-0".
* Wheels & Tire Sizes are 205/70-15.
* Rake Wheels are 55" Diameter (Tooth end to Tooth End).
* Each Wheel has 40, 7mm Teeth.
