#9706 - toyoda FA550 cnc horizontal machining center
For Sale: #9706 - toyoda FA550 cnc horizontal machining center
Subject #9706 - toyoda FA550 cnc horizontal machining center
Ad is submitted by poster:

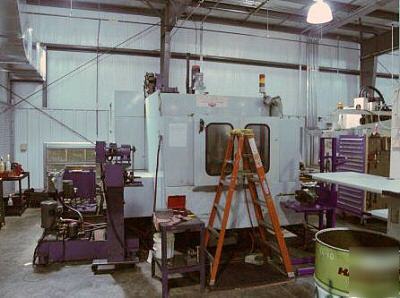

TOYODA FA550 CNC HORIZONTAL MACHINING CENTER
Rotary index table increments 1 deg.
Pallet height (from floor) 43.3"
Work table lateral travel (X) 28"
Spindle head vertical travel (Y) 28"
Spindle nose to rotary table center 5.9" - 27.95"
Spindle nose to top face of pallet 2.0" - 29.9"
Rapid traverses (X, Y, Z) 790 ipm
Cutting feedrate (X, Y, Z) .04 - 315 ipm
Spindle speed (infinitely variable) 100 - 10,000 rpm
Spindle diameter (front bearing ID) 3.15"
Spindle nose taper ISOR 297 #50
Type of stored tool Holder MAS CAT #50
Maximum tool size (diameter x length) 4.7" x 15.7"
Tool to tool change cycle time 2.0 sec.
Hydraulic oil (DTE Oil Light) 10.6 gal.
Spindle head lubrication (Velocite #3) 4.8 gal.
Spindle head lubrication (Velocite #4) 1.3 gal.
Slideway lubrication (Vactra #2) 1.3 gal.
Linear position accuracy +/- .00012 full stroke
Linear repeatability +/- .00006
Rotary index table accuracy +/- 3 sec. of arc
Maximum work load (on pallet) 1,760 lbs.
Automatic spindle nose air blow
Run hour display (CRT display)
Automatic centralized lubrication
Automatic pallet changer with two pallets
Automatic lift-up front discharge chip conveyor
*Recently reconditioned as follows:
Rebuilt Y-Axis, included turkite replacement, new gib, new ball screw and bearings
Rebuilt coolant system high and low pressure installed new rotary union at spindle and new hoses
New Fanuc power supply (remanufactured)
New drive motor for automatic tool changer
Rebuilt tool changer swing arm
New ARS60 Servo controller for tool magazine
Chiller for spindle cooling repaired leak and recharged system
Make repairs to center partition, frame and lexan
Replaced bearing in pallet changer
