Agilent/hp 8970B noise figure meter 10MHZ - 2047MHZ
For Sale: Agilent/hp 8970B noise figure meter 10MHZ - 2047MHZ
Subject Agilent/hp 8970B noise figure meter 10MHZ - 2047MHZ
Ad is submitted by poster:

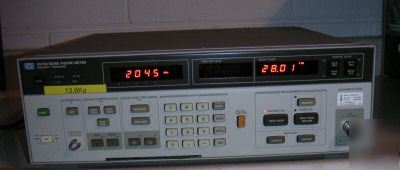

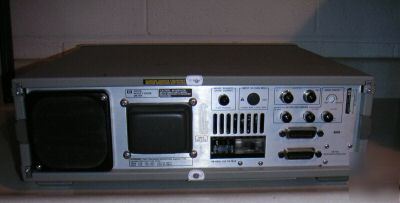

This is an Agilent/HP 8970B Noise Figure Meter with a frequency range of 10MHz-2047MhZ.
This unit includes OPTION 020 which extends the frequency range to 2047 Mhz (normally 1600Mhz)
The unit is in great condition (case has some scrapes from normal use) and appears to be working properly. There are no errors flagged and it was last calibrated by Agilent in 2005 (expired Feb 2006).
- Frequency Range: 10 MHz to 2047 MHz
- Noise Figure Measurement Range: 0 to 30 dB
- NF Instrumentation Uncertainty: +0.1 dB
- Gain Measurement Range: -20 to+40 dB
- Gain Instrumentation Uncertainty: +0.15 dB
- Input SWR (reflection coefficient) : <1.8 (0.286) 10 MHz to 1600 MHz
<2.0 (0.33) 10 MHz to 2047 MHz
- Requires 346A/B/C noise source
This unit includes the following OPTIONS:

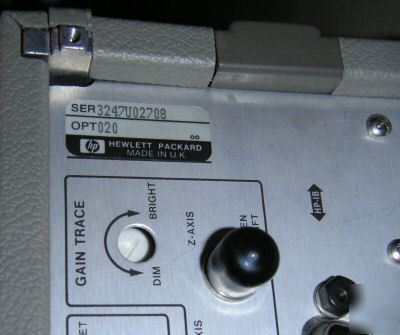

Option 020 – Extended frequency range to 2047Mhz
I do not have the manual, but you can find it at the link below.
Full Manual (20.2MB!): http://cp.literature.agilent.com/litweb/pdf/08970-91012.pdf
The unit will be professionally packaged in expanding foam.
http://www.canadapost.ca/personal/tools/rc/res/bin/rc_res-e.asp
Please feel free to ask any questions.
