New jet 690036 jvm-836-1 1-1/2 hp vertical mill in box
For Sale: New jet 690036 jvm-836-1 1-1/2 hp vertical mill in box
Subject New jet 690036 jvm-836-1 1-1/2 hp vertical mill in box
Ad is submitted by poster:

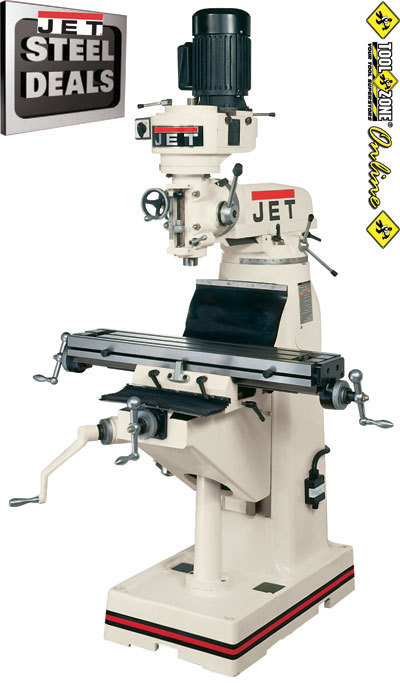

This Jet 690036 JVM-836-1 1-1/2 HP 115V Vertical Mill is Brand New Never Used!
Note: Liftgate Service is not included!
If you need Liftgate Service you will need to arrange Liftgate Service with the trucking company.
You will be able to arrange Liftgate Service with the trucking company as soon as we e-mail you with the tracking information!
Tool Zone, Inc. WILL NOT PAY FOR LIFTGATE SERVICE !
Jet JVM-836-1 Mill Features:
This small mill has all of the features found on Jet larger mills, but sized for the home shop, repair shops or small maintenance shops.
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision spindle bearings
• Over 10" of front to back ram travel
• Locks on all movable surfaces
• Hardened and ground precision table
• Precision ground dovetail ways
• One-shot lubrication system
Jet JVM-836-1 Mill Specifications:
• Table Size (in.): 7-7/8 x 35-3/4
• Diameter of Quill (in.): 3-3/8
• Number of Spindle Speeds: 5
• Range of Spindle Speeds (RPM): 240 - 1,550
• Distance Spindle to Table (max/in.): 14
• Distance Spindle to Column (min./in.): 5-1/4
• Distance Spindle to Column (max/in.): 15-3/4
• Longitudinal Table Travel (in.) (X-axis): 25-1/4
• Cross Travel (in.) (Y-axis): 9-1/2
• Collet Capacity (in.): 1/8 - 7/8
• T-Slots (Number & Size/ in.): 3 and 5/8
• T-Slot Centers (in.): 2-1/2
• Maximum Weight of Workpiece (lbs.): 500
• Travel of Knee (in.) (7-axis): 14
• Travel of Ram (in.): 10-1/2
• Motor: 1-1/2HP 1Ph 115/ 230V Prewired 115V
• Overall Dimensions (in./W x D x H): 55x52x77
Jet 2 Year Metalworking Warranty:
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
Tool Zone Carries a Full Line of Jet Mill Accessories - Just Call Us At (***) 252-8500
Some of The Accessories Available For This Mill:
• Milling Chuck and Collet Set
We Can Get You Any Jet Mill Accessory You Are Looking For!
