Arboga GL2508 floor drill press,12" throat,1-1/4" cap


For Sale: Arboga GL2508 floor drill press,12" throat,1-1/4" cap


Subject Arboga GL2508 floor drill press,12" throat,1-1/4" cap

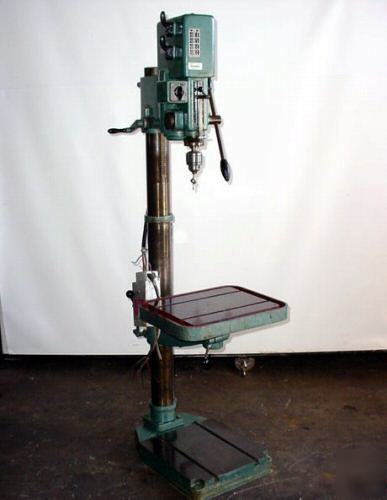

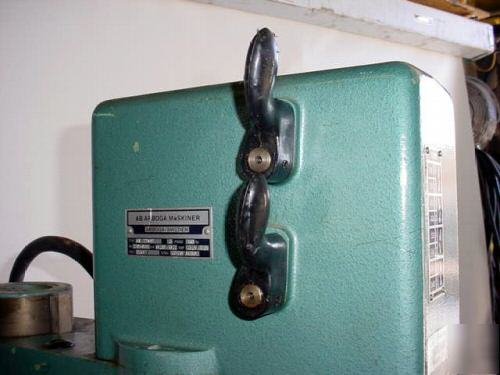

Ad is submitted by poster: This is an Arboga Maskiner Drill Press; a Heavy Duty Drill of High Quality made in Sweden and is in excellent condition. Note the double clamp locks through a single lever on the head and table mechanisms.
This Drill Press came from a local University and has seen little use.

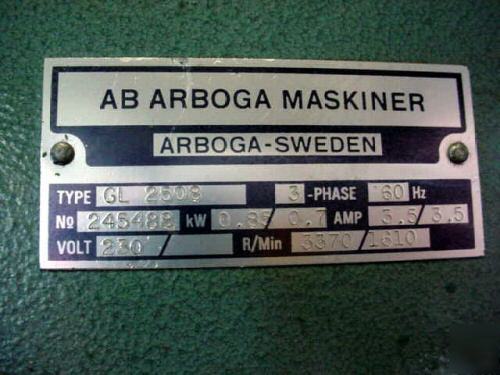

* Type BG 2508 / Serial # 245488
* 1-1/4" Drill Capacity - Mild Steel

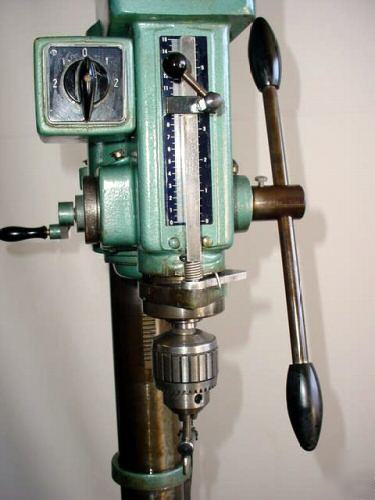

* Spindle 2-3/8 " Dia / #3 Morse Taper

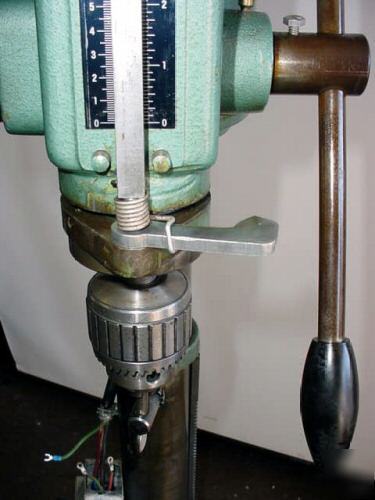

* Spindle has Quick Release for removing Drills/Chucks - Just move finger out of spindle groove and reverse the handle to free up the tool - see close up in second to last photo
* 230 Volt / 3 Phase / 60 Hz / 2 Speed Motor / 1.14 HP/.94 HP (.85/.7 kw) / 3.5 Amp

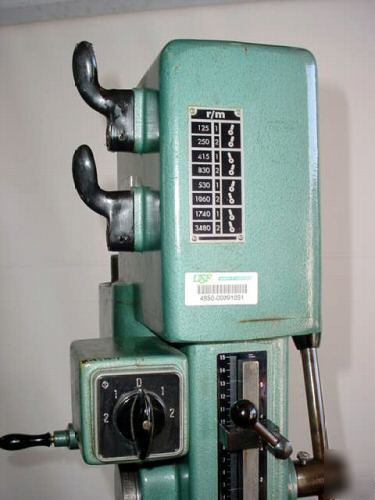

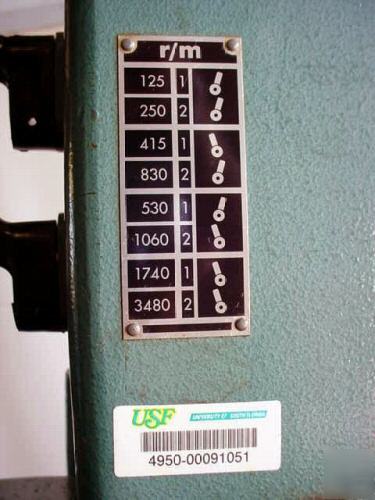

* (8) Spindle Speeds 125-3480 RPM through geared head levers - not pulleys
* Jacobs Drill Chuck 0-1/2" Capacity
* Maximum Table to Spindle Clearance 37-1/2"

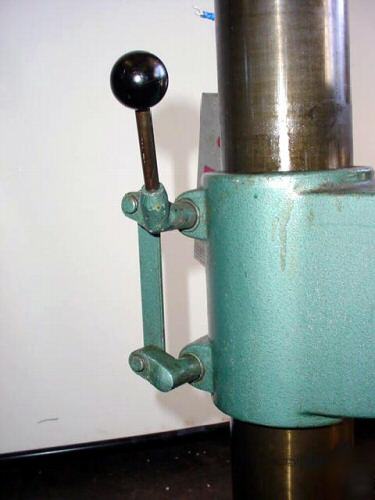

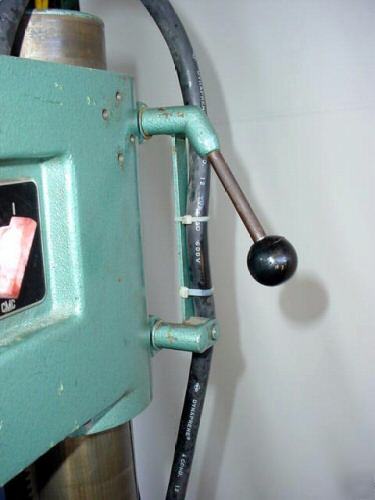

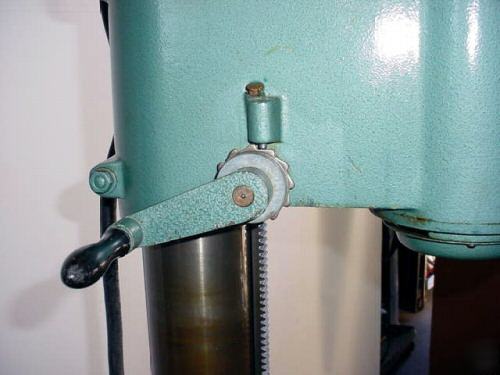

* Double Clamp Locks with Single Lever on the Head and Table - Head has Ratchet Type Safety Handle

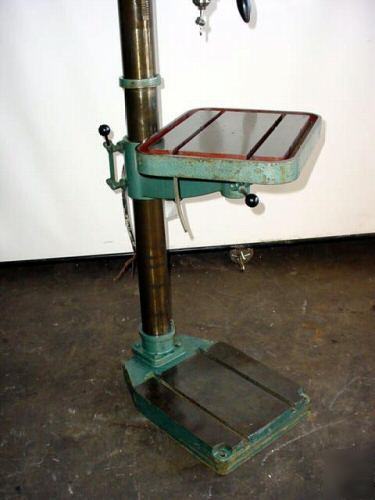

* Table working Dimensions 13" X 16" / Overall with through 15-3/4" X 19-3/4"
* Table Vertical Adjustment 24-1/2"
* Table Rotates & Locks 360 Degrees
Any questions e-mail or call Brandon @ (***)-580-4794. Please include item number in all correspondence.
No charge for packing, skidding or loading.
