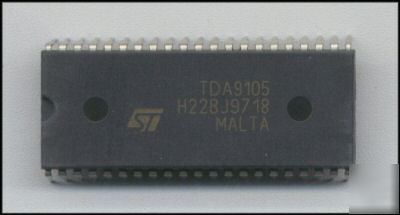

9105 / TDA9105 / deflection processor multisync monitor


For Sale: 9105 / TDA9105 / deflection processor multisync monitor


Subject 9105 / TDA9105 / deflection processor multisync monitor
Ad is submitted by poster: Now over 1,400 items in our Store!
Please note: The following spec sheet is for the TDA9105A these parts are NOT the "A" version and I am unsure of the exact difference.
DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
* 1st PLLLOCK /UNLOCK INFORMATION
* WIDE RANGE DC CONTROLLED H-POSITION
ON/OFF SWITCH (FOR PWR MANAGEMENT)
* DCCONTROLLEDV-AMP,V-POS,S-AMP&C-COR
* VERTICAL PARABOLA GENERATOR WITH DC CONTROLLEDKEYSTONE & AMPLITUDE
* AUTO TRACKING WITH V-POS & V-AMP
* CORNER CORRECTION WITH DC CONTROLLED AMPLITUDE
* WAVE FORM GENERATOR FOR PARALELLOGRAM& SIDE PIN BALANCECONTROL
* AUTO TRACKING WITH V-POS & V-AMP
* VERTICAL PARABOLA OUTPUT FOR VERTICAL DYNAMIC FOCUS
* AUTO TRACKING WITH V-POS & V-AMP
* ACCEPT POSITIVE OR NEGATIVE HORIZONTAL & VERTICAL SYNC POLARITIES
The TDA9105A is a monolithic integrated circuit assembled in a 42 pins shrink dual in line plastic package.
This IC controls all the functions related to the horizontal and vertical deflection in multimodes or multisync monitors.
This IC, combined with TDA9205 (RGB preamp), STV942x(OSDprocessor), ST727x(micro controller) and TDA817x (vertical booster), allows to realize very simple and high quality multimodes or multisync monitors.
