Conveyor technologies 1-section automatic circuit board
For Sale: Conveyor technologies 1-section automatic circuit board
Subject Conveyor technologies 1-section automatic circuit board
Ad is submitted by poster:
Machine Part Model # XCC-39.25I-1-NP-0539
The following is from the owners operation manual:
This machine is intended for use under conditions prevalent in electronics industry production lines. The operating environment for this equipment should be maintained at a temperature of 32°F - 112°F.
Main Power - 110 VAC, 60 Hertz, 15A
Control Power - 24 VDC. Internal 120 VAC/24 VDC power supply is provided for operation of the photoelectric sensor.
(2) Conveyor Belt Motors - 110 VAC, 6 w, 60 Hz, 0.18 A
(1) Supply Line breaker - 3 amps
(1) Internal Fuse - 0.5 amps, time delay
(2) Internal Fuses - 2 amps, time delay
(1) Internal Fuse - 3 amps, time delay
The .6MSpecificationsUnits MetricSize Buffer is designed for use with products that conform to the following technical specifications.
A listing of all replacement parts for the 1-Section Conveyor, along with recommended spares and wear items, is included in Appendix A at the end of the manual.
Conveyor Technologies welcomes all questions and/or comments concerning the performance, operation, or maintenance of the 1-Section Conveyor. Please contact:
* For ordering spare parts, new machines, or customized options, contact the Sales Department.
The 1-Section Conveyor consists of a single pair of narrow conveyor belts, mounted on opposing rails. The rail nearest the work at the front of the machine is stationary (known as fixed rail), while the far rail (the adjustable rail) can be moved to accommodate PCBs of various widths. The adjustable rail is repositioned manually by using the attached hand wheel.
The belt conveyors are directly driven by a pair of low-wattage AC motors. Conveyor Technologies uses these motors to ensure quick, consistent, smooth movement of the conveyors. The motors are virtually maintenance-free, and are able to operate quietly and efficiently without adding any substantial heat load to the production area.
The 1-Section Conveyors uses only a single photoelectric sensor to monitor the movement of the boards through the machine.
More operation and maintenance procedures continue in the manual.
These conveyors were installed on machines for a circuit board machine vision application. However this project has discontinued before it ever finished and most of the conveyors were never even installed on machines yet. The conveyors are listed as used simply because 33% of the conveyors were installed on a machine and the rest have been in storage for a few years. Some, like the one pictured, still have the original bag of no-moisture pellets attached. The conveyors are all currently removed from machines and are now in storage. They may be a little dusty and some bolts may have some minor surface rust from sitting around, but all-in-all they look pretty nice. The moving parts are well greased and move with ease. Motors appear like new, but have not been tested. Most units will come with mounting brackets attached. Just a little clean-up and these units are like brand new.
Measurements: (not including the mounting bracket)
The original purchase price for these units was $3,350.00 each

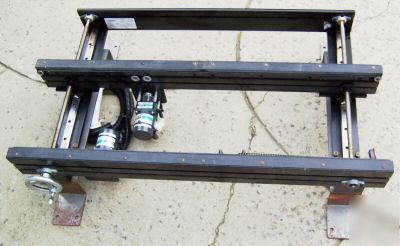

Conveyor pictured below is shown sitting on top of a mounting bracket
Please Visit our “about me“ page about me
We can set up delivery with a freight service.
Not sure if it would be wise to put more than 1 unit on a pallet.
1 - Unit on a pallet weighs approx. 110lbs.
We can deliver to nearby areas for a fee.
We are located near Buffalo, NY
Thank You for stopping by....Have a great day!
