Universal grinder 14" x 72" cincinnati milicron
For Sale: Universal grinder 14" x 72" cincinnati milicron
Subject Universal grinder 14" x 72" cincinnati milicron
Ad is submitted by poster:
WE ALWAYS CONSIDER ALL REASONABLE OFFERS AND MANY ARE PROMPTLY ACCEPTED!

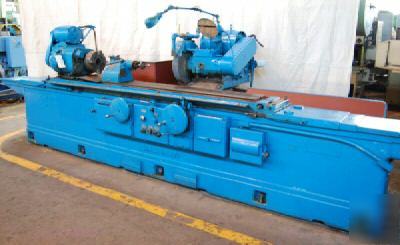

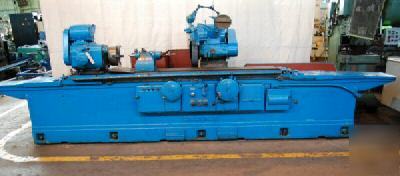

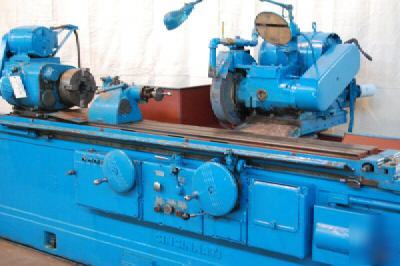

You are invited to purchase or "MAKE YOUR BEST OFFER" on a "good running" 14" x 72" Cincinnati Milicron Universal Grinder and having the following catalog specifications:
Swing Over Table, Maximum.............. 14.9375"
Grinding Diameter, Standard............ 14"
Distance Between Centers, Nominal...... 72"
Grinding Wheel Diameter, Standard...... 14"
Grinding Wheel Width, Standard......... 1.5"
Grinding Wheel Hole Diameter........... 5"
Table Swivel Taper Toward Wheelhead.... 3"
TPF Table Swivel Taper Away Wheelhead...... 1"
TPF Table Swivel Angle Toward Wheelhead.... 7-DEGREES
Table Swivel Angle Away Wheelhead...... 2-DEGREES
Headstock Swivel Angle Toward Wheelhead 90-DEGREES
Headstock Swivel Angle Away Wheelhead.. 30-DEGREES
Lower Grinding Wheelhead Swivel Range.. 90-DEGREES
Upper Grinding Wheelhead Swivel Range.. 30-DEGREES
Workhead and Tailstock Center Tapers... #10 B&S Workhead
Spindle Speeds, Range......... 25 to 200 RPM
Table Longitudinal Feeds, Range........ 3 to 220 IPM
Auto-Pick In-Feed Diameter Reduction... .0002 to .0125 IPM
Grinding Wheelhead Spindle Motor....... 7.5 HP/1745 RPM
Weight, Approximately.................. 10300 LBS PRICE:
Hydraulic Longitudinal Table Feed
Footstock Mounted Grinding Wheel Dresser
Barnesdrill Magnetic Coolant Seperator
Will load at no-cost to purchaser
This 14" x 72" Cincinnati Milicron Universal Grinder is known to be in a "good" working order and can be inspected in Southwestern Ohio by calling (***) 882 2765 for appointment.
For anyone needing financing on used machine tools we have found that Pinnacle Business Finance, Inc. to be quite reliable and ready and willing to finance both small and large companies. If you might be interested you can contact Mr. Jeff Kato at 1-(***)-370-1871 and tell him that jona-heath suggested that you call.
We thank you in advance for your interest in this item and should you have any questions please feel free to ask them of us and we will try to answer them.
