7.9" ram-type edm, sodick moldmaker 3 TX21 cn
For Sale: 7.9" ram-type edm, sodick moldmaker 3 TX21 cn
Subject 7.9" ram-type edm, sodick moldmaker 3 TX21 cn
Ad is submitted by poster:
Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy
* Manual Lathes, Mills, Drills, Saws
* Grinders, Hones, Finishing
* Ovens, Furnaces & Environmental

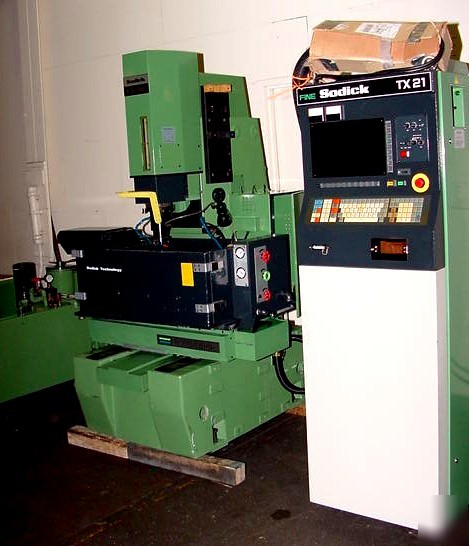

7.9" RAM-TYPE EDM, Sodick Moldmaker 3 TX21 CN
7.9" RAM-TYPE EDM, Sodick Moldmaker 3 TX21 CN
MODEL: MOLDMAKER 3 S/N: 1-8743 NEW: 1997
DIMENSIONS (W x L x H) .......... 35.4" x 20" x 12.5"
TABLE AREA (L x W) ................ 23.6" x 11.8"
AXIS TRAVEL (X,Y,Z) ............... 11.8" x 7.8" x 9.8"
PLATEN TO TABLE CLEARANCE ........ 11.8" MIN./21.6" MAX.
THROAT CLEARANCE .................. 22.6"
RESERVOIR CAPACITY ................ 100 GALS.
PERMISSIBLE WORKPIECE ON TABLE .... 1,210 LBS.
PERMISSIBLE ELECTRODE WEIGHT ...... 110 LBS.
APPROX. MACHINE WEIGHT ............. 3,520 LBS.
MACHINE TOOL DIMS. ................. 50.4" x 46.7" x 83.1"H
FILTRATION SYSTEM DIMS. ............ 32.7" x 51.2" x 37.2"H
SODICK TX21 CNC CONTROL & 40 AMP POWER SUPPLY
4-POSITION AUTOMATIC TOOLCHANGER
, A SPECIALIST IN SERVICING SODICKS. WOLFGANG WAS HIRED
TO GO FROM DETROIT TO MN TO "DE-INSTALL" THE MACHINE,
INSTALL THE TABLE LOCKS, AND TO DO ALL NECCESSARY WORK
THIS WAS DONE ON OCTOBER 1st, 2007, AT A COST $2,000.
** EXCELLENT CONDITION - LOW HOURS **
Machine Location: HARRISON, NJ
Click Here For More Sodick Machines
Click Here For More EDM's - CNC RAM TYPE EDM MACHINES(s)
Call Andy at (***) 873-6224 ext 7600
Call Alex at (***) 873-6224 ext 7613
Finance This Equipment For Your Business - Click Here
Finance Equipment For Your Business - Click Here
* Machinery Values is one of the world's largest machinery dealers, in business since 1971.
* New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines.
* Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this.
