433 torrington 2-die rotary swager #22269
For Sale: 433 torrington 2-die rotary swager #22269
Subject 433 torrington 2-die rotary swager #22269
Ad is submitted by poster:

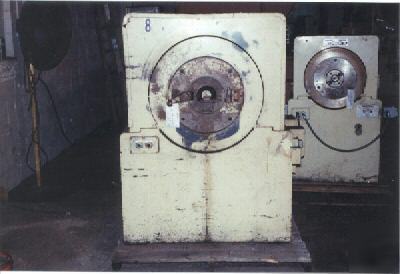

433 TORRINGTON 2-DIE ROTARY SWAGER
New 1956, Serial No. 5051, Model 433
(12) Rolls - 2" Diam. x 3-3/8"
Solid Diameter Capacity, Maximum.......... 5/8"
Tube Diameter Capacity, Maximum........... 2-1/4"
Hole Diameter Thru Spindle................ 2"
Longest Taper, In One Operation........... 2-7/8"
Die Size, Length.......................... 3"
Die Size, Width........................... 2.687"
Die Size, Height.......................... 1.920"
Backer Size, Length....................... 3"
Backer Size, Width........................ 2.687"
Backer Size, Height....................... 1.750"
Spindle Speed............................. 250 RPM
Blows Per Minute.......................... 1800 BPM
Height, Floor to Spindle CL............... 38"
Motor Horsepower.......................... 5 HP
Electrical System......................... 230-460/3/60
Overall Dimensions, L x W................. 3'6" x 4'
Overall Height............................ 4'7"
Weight Approximately...................... 2815 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $9,950.00
All machines/equipment subject to prior sale.
