For Sale: fpga development board XC3S1500 with pci i/o header
Subject fpga development board XC3S1500 with pci i/o header
Ad is submitted by poster:

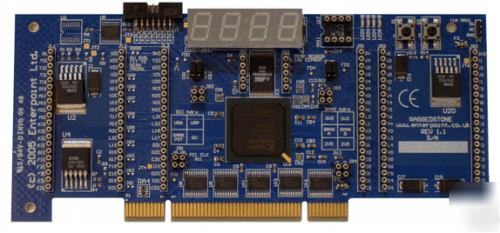

Enterpoint's Raggedstone1-1500 FPGA Development Board including PCI I/O Header and programming cable PROG2. Fitted with a Xilinx Spartan3 XC3S1500 FPGA.
PCI INTERFACE - 32 bit, 33 MHz, 3.3/5V PCI interface. Flash Memory - 4Mbit Flash Memory. EEprom Memory - 1 x 16KBit serial EEprom fitted. DIL Headers - 2 sets of DIL Headers supporting DIL components or modules. Segment Display - 4 digit LED - removable to give extra I/O. LEDs - 4 LEDs. LVDS Clock Module Header - Supporting Enterpoint's LVDS clock module. Header can also be used as I/O. 3V DIL Oscillator Socket - Takes 3.3V oscillator in 8 pin DIL size. Push Switches - 2 push switches fitted. SPARTAN-3 BANK I/O VOLTAGES - 4 banks have a fixed I/O voltage of 3.3V. 4 banks individually support 2.5V / 3.3V or user supply by jumper selection. DCI - User fit DCI resistors. VRN/VRP can also be used general I/O when not used for DCI. User I/O - Large number of user I/O available.
Full list is available http://www.enterpoint.co.uk/moelbryn/raggedstone1.html .
Several boards currently in stock. Educational discounts available for quanity orders from schools, colleges and universities.
