Microcontroller 17 i/o usb microchip pic I2C A2D techfx
For Sale: Microcontroller 17 i/o usb microchip pic I2C A2D techfx
Subject Microcontroller 17 i/o usb microchip pic I2C A2D techfx
Ad is submitted by poster:
The new techFX mini embedded controller!!!!!!!!!!!!!
from The Silicon Horizon as featured in nuts and volts magazine, and in circuit cellar!!!
FREE BOOTLOADER THROUGH USB PORT
FREE CONTROL SEQUENCE SOFTWARE
FREE CONTROLLER REPAIR FOR LIFE
as featured on http://
NOW WITH 12 BIT A2D 18F4553 MCU!!!!

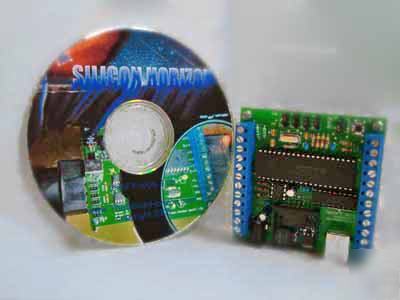

(1) cd with techFX tools (program it with no code writing!!)
techFX mini controller overview
connect motors,servos,relays,digital and analog sensors and I2C sensors and accessories, valves (all kinds pneumatic, vacuum etc). connect solid state relays to control 120v AC or higher voltage devices safely.
quickly use our software to create your control sequence to control your devices over time. FREE SOFTWARE FREE BOOTLOADER
connect addition modules and I2C sensors such as the devantech sd21 or mindsensors board to control limitless amounts of servos, add a compass module or GPS, add radar and ultrasonic sensors.
great for anamatronics! great for special effects and controlling lighting!! robotics!! robots!!
great for prop builders, haunted houses, hobbyists, moving displays, whatever you need to control!!
use our free tech support to design and help build your target application!! free help with interfacing and code if writing your own!!
free controller repair if you blow this up!!
you cant go wrong with this controller!!!!!!!!!!!!
-48Mhz Microchip 18f4553 MCU at 12 MIPS
-Full speed USB 2.0 communications
-bootloader through USB allows easy firmware upgrading
-256K memory on 1 Mhz I2C EEprom
-switching power supply for low heat, high current operation.
-dual voltage operation featuring:
-5 volt line on switching regulator upto 1 amp
-external voltage upto 1 amp (wall adapter voltage)
-low heat dissipation (<1 watt) from switching supply
-2.5mm DC power jack (CP) for larger wall adapters
-ability to run 12 and 24 volt solenoids,motors,valves
17 total IO consisting of: (all on screw terminals!!)
-6 high current outputs through a darlington array
-10 configurable IO featuring:
-upto 4 A2D lines at 12 bit resolution
-upto 2 PWM lines configurable from 3Khz-4Mhz**
upto 2 servos 21 ms refresh from .5-2.5 mS pulses at 10 uSec resolution using hardware PWM port
-all configurable as input or output
-4 pulllup/pulldown selectable on jumper
-1 I2C bus configurable at 100,400 Khz and 1 Mhz speeds.
All high current outputs are on screw type terminal blocks.
Screw terminals featuring +5v, ground, and external voltage lines.
-socketed components for easy replacement
-switching power supply can be replaced and upgraded to higher power unit
-power leds show when main power is on
-circuit board standoffs included
-configure ALL IO through GUI software and program controller
-configure upto 255 control commands into a timed sequence and program to controller
-use IO tester to test commands and hooked up devices
-use bootloader to upgrade the firmware
-use Microchip MPLAB IDE with MCC18 to code your applications
-prewritten USB framework from Miocrochip handles all USB functions
-picbasic or asm or CCS compilers
**performance at 400Khz-4Mhz may not be a perfect waveform as the device is rated for 400 Khz
***wall adapter or USB cable not included... you should select a wall adapter based upon what accessories you want to run. if you are running 12 volt solenoids and valves then u should purchase a 12 volt wall adapter, if you are using 24 volt valves and solenoids then use one appropriately, that is why there is no wall adapter included; so you can tailor it to your application.
the product does not work off USB power alone beucase it is a high power device (upto 2 amps total), and therefor people may inadvertantly damage the USB port (or protection diodes if it was designed for that use, so therefor it is wall adapter powered only.
