Haas laser trumpf hl 124P
For Sale: Haas laser trumpf hl 124P
Subject Haas laser trumpf hl 124P
Ad is submitted by poster:

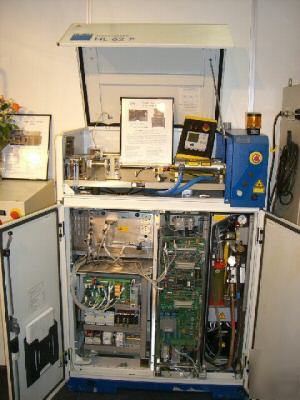

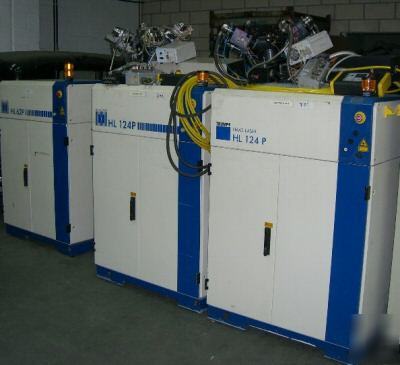

Haas-Laser Trumpf HL 124P Pulsed solid-state lasers
We offer here one Pulsed Solid State Laser of 120W power. We sell the LCB version, with teach pendant for controlling the laser parameters. There are several units available for sale.
Years 1999-2000. Very good condition
Average Power 1) [W] 120│120│110
Max. pulse energy [J] 30│60│90
Laser light cable [μm] 400 type LLKB

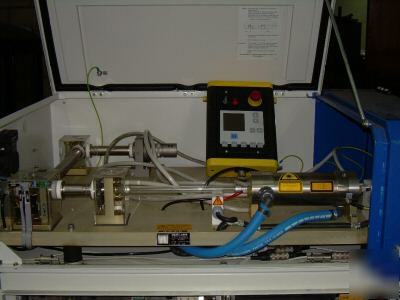

Control: LCB. The LCB has a control unit with a display where laser parameters can be set and status and system
messages received. For communication with external systems, the LCB offer a comfortable PLC interface. For simpler and faster operation,
up to 25 sets of parameters can be stored.
Electrical connection: 400V(+-10%), 2P+PE, 50/60 Hz, 16A
Max. power consumption [kW]: 3,0
Max. cooling water consumption at 15ºC [m3/h]: 0,25
Cooling water temperature range [ºC]: 6-25
Laser unit protection type: IP 54
Control unit protection type: IP 65
Dimensions W x H x D: 1020 x 1460 x 650
Ambient temperature [ºC]: 10-40
Uses: Welding, precision cutting and drilling
The pulsed solid-state lasers from TRUMPF Laser are deployed both in industrial fabrication and in mechanics workshops. With their cost-efficiency and reliability, they have proven themselves many times over in numerous branches over the past decades: in precision engineering, electronics, electro-technology, medical technology, in tool and mould manufacture and also in the automotive supplier industry.

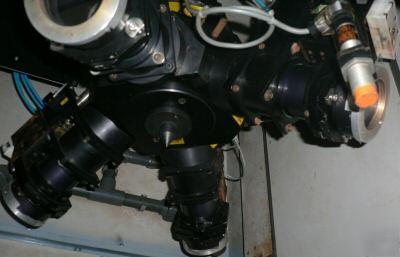

With the modular optics design and an extensive line of focusing optics, they can be adapted to the machining task at hand and tailored to the respective production concept.
The pulsed solid-state lasers from TRUMPF Laser are deployed both in industrial fabrication and in mechanics' workshops.
With their cost-efficiency and reliability, they have proven themselves many times over in numerous branches over the past decades: in precision engineering, electronics, electro-technology, medical technology, in tool and mould manufacture and also in the automotive supplier industry.
With the modular optics design and an extensive line of focusing optics, they can be adapted to the machining task at hand and tailored to the respective production concept. Thanks to beam splitting, one laser unit can weld simultaneously at several locations.
