CABLE113 motorola 20 pin cdm CDM1250 vhf uhf repeater
For Sale: CABLE113 motorola 20 pin cdm CDM1250 vhf uhf repeater
Subject CABLE113 motorola 20 pin cdm CDM1250 vhf uhf repeater
Ad is submitted by poster:

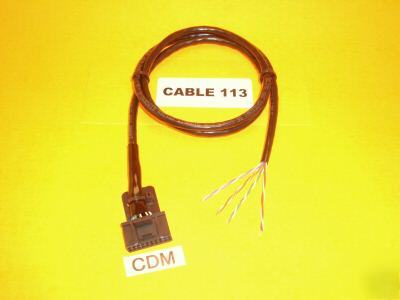

(One) 36" twisted pair cable assembly with perfect-fit latching plug at one end to mate with Motorola radios having a 20-pin rear accessory connector, i.e.: CDM750, CDM1250, CDM1550, CDM1550LS, CDM1550LS+ and Pro Series.
This cable assembly features a high quality, flexible, 4-pair cable with individually color-coded, 24 awg stranded conductors (8-conductors total).
Eight (8) pins of the radio connector are brought out to flying leads.
This cable is wired as follows:
These well-constructed cables are perfect for conveniently interfacing 20-pin Motorola radios to consoles, repeater controllers, tone panels, tone remote adaptors, TNCs, interconnects, etc.
Includes data sheet with connector pinouts & functions and wire color codes. Hard-to-find item, reasonably priced.
NOTE: Please view my other items (click on MRE Direct, above). I offer several different versions of this 20-pin cable, as well as cables for 16-pin radios and other connector kits and parts. Special configurations (custom cable lengths, etc.) are available, too - with fast turnaround and no minimum order. If you don't see what you need, please ask.
