Varian high vacuum hs-20 diffusion pump
For Sale: Varian high vacuum hs-20 diffusion pump
Subject Varian high vacuum hs-20 diffusion pump
Ad is submitted by poster:

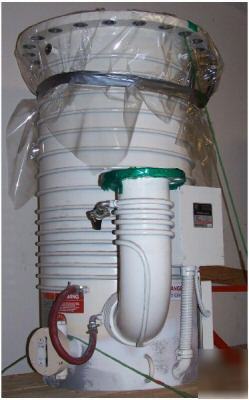

This is a very good, lightly used Varian HS-20 Diffusion Pump, The Varian, Inc. Model HS-20 Diffusion Pump has a five-stage fractionating jet that purifies the pumping fluid as it operates, helping to achieve low base pressures. It has ASA flanges (20-inch ASA inlet, 4-inch ASA foreline).
* High tolerable forepressure
* Fluid sight-glass/fill-and-drain enables easy fluid monitoring
* Full thermal protection guards against overtemperature
* Includes an NW25 KF gauge port just below the inlet flange
* Foreline baffle prevents loss of fluid to the backing pump
* Optional halo baffle reduces backstreaming without adding height
* Tee-type water connections ease cleaning the cooling coils
* Pumping speed: 17,500 l/sec (air), 22,000 l/sec (helium and H2)
- 14 torr-l/sec in operating range
- 18 torr-l/sec @ 0.01 torr
* Operating range: 8 × 10-4 torr to <5 × 10-8 torr
* Maximum forepressure: 0.65 torr (no load), 0.55 torr (full load)
* Backstreaming rate: <1.5 x 10-3 mg/cm²/min with standard cold cap
* Recommended backing pump speed: >=100 cfm
* Pumping fluid charge: 5 quarts (4.7 liters)
* Electrical requirements: 480VAC, 60 Hz, 3-phase
* Cooling water requirements: 1.5 gpm at 60-80 °F
* Water connnections: 1/4-inch female pipe thread
* Pumping fluid: DC-704 recommended
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Diane Olson
Contact: D.Olson@repair--parts.com (Diane Olson) (this is a temporary forwarding address).
