Tektronix tds 520A 500MHZ digitizing oscilloscope w/opt
For Sale: Tektronix tds 520A 500MHZ digitizing oscilloscope w/opt
Subject Tektronix tds 520A 500MHZ digitizing oscilloscope w/opt
Ad is submitted by poster:
The scope was Recondition by Tektronix. There is a 5 day check out time for you to see that the scope works fine (read below information).

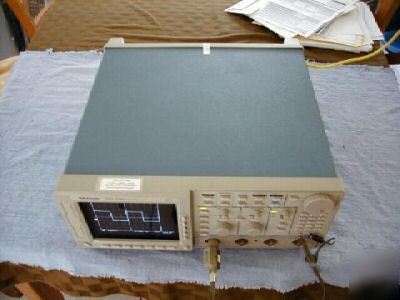

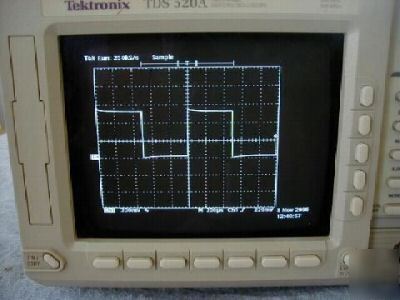

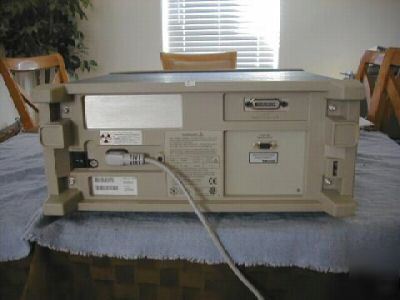

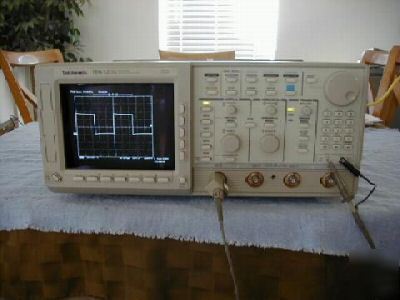

The Tektronix digitizing oscilloscope is a superb tool for acquiring, displaying, and measuring waveforms. Its performance addresses the needs of both benchtop lab and portable applications. It has the GPIB,and 15 pin VGS analog output on back.
Tektronix TDS520 Performance Characteristics: ***Form Factor Benchtop ***Bandwidth 500 MHz ***Number of Channels 2 ch ***Simultaneous Channels 2 ch ***Simultaneous Maximum Sampling Rate/ch 500 MSa/s ***One ch. only max. sampling rate 1 GSa/s ***Max. Record Length 50000 pt/sec ***Min. Vertical Sensitivity 1 mV/div ***Maximum Vertical Sensitivity 10 V/div ***Channel to Channel Delay 50 ps ***Rise time 700 ps ***Number of Bits 8 bits ***Input Impedance 1 MOhm ***Input Impedance (alternate) 50 Ohm ***Input Coupling AC,DC,GND ***Maximum Input Voltage 400 Vrms ***Main time base - lowest 500 ps/div ***Main time base - highest 10 s/div ***Timebase accuracy .0025 % ***Trigger Source External,Internal ***Trigger Modes Auto,Edge,Logic,Normal,Pulse,Single ***Minimum Trigger Holdoff 16 ns ***Minimum Glitch Trigger 1 ns ***Display Type Color CRT ***Display Size 17.78 cm ***Display modes Dot,Persistence,Vector ***Display Update Rate 150 wv/sec . It has the GPIB and 15 pin VGA output on back.
Reasonable offers are well come. REASONABLE ONES!
This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Rhea Sandoval
Contact: rhea.sandoval@repair--parts.com (Rhea Sandoval) (this is a temporary forwarding address).
