> @@ @@ dario bandsaw SV3 media wood cut articulated
@@ @@ dario bandsaw SV3 media wood cut articulated
For Sale: @@ @@ dario bandsaw SV3 media wood cut articulated
Subject @@ @@ dario bandsaw SV3 media wood cut articulated
Ad is submitted by poster:
American Woodworking Equipment Distributors
With circle cutting attachment
Imagine the potential of being able to tilt at will and create a masterpiece!
The bandsaw Model SV3, specially built to comply with craft-working requirements, shows some innovations not found on other traditional type saws:
ü Small size and large cutting capacity.
ü Tiltable table: -15o to +45o.
ü Blade completely enclosed for maximum safety.
ü Thanks to 3 wheels (rubber, vulcanized, and ground), it is possible to use blades as narrow as 1/8†(3 mm) for very small radii. Flywheels themselves do not require frequent maintenance.
ü Mounted on is an articulated arm, which allows smooth and easy movement of the saw unit around the lumber or panels.
Cutting height without work surface and blade guide: 300 mm.
Dimensions of work surface: 500 x 400 mm.
Maximum blade length: 2450 mm.
Three-phase motor : On request
Single-phase motor : 1,5 HP 1,1 KW
Overall dimensions (length x height):950 x 500 x 890

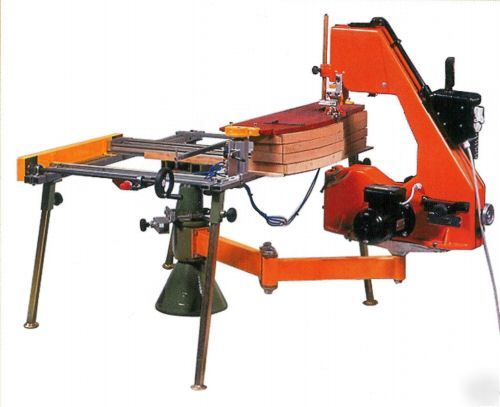

Model Dario SV3 Media 2000 Bandsaw Mounted on an Articulated Arm and Column
Extension Bar with Bracket and Legs for Material Support Manual Screw Clamp Single
Phase 200 Volt Motor Dual Palm Safety Switches. 96†blade.
Price FOB Suwanee, GA $ 6,050.00

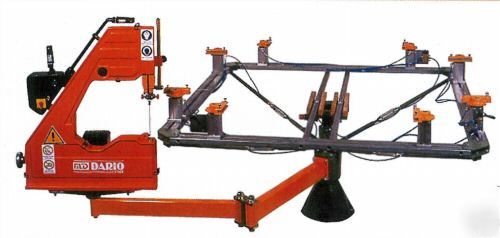

Standard template air clamp system $ 1,250.00
*Template air clamp with mechanical panel
feed table and supports. $ 1,995.00

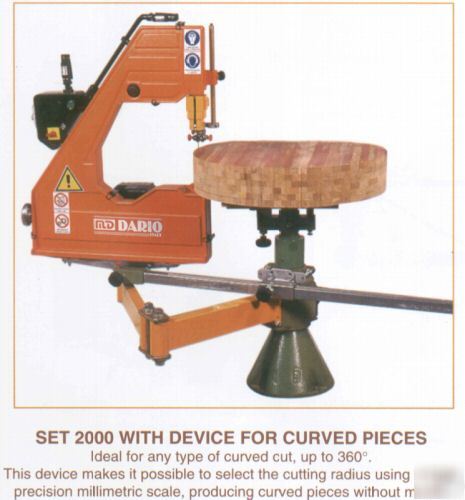

Circle cutting attachment $ 850.00

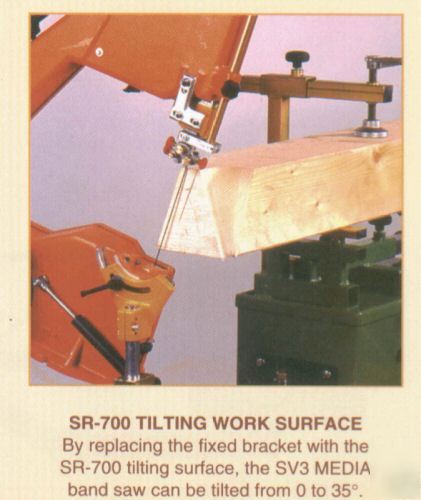

Tilting attachment for bevel cuts $ 645.00
