Zap checker model 300
For Sale: Zap checker model 300
Subject Zap checker model 300
Ad is submitted by poster:
Advanced Technology RF Detection
The Model 300 takes full band RF detection to new levels. With a new RF preamplifier section it boasts extraordinary sensitivity, better than -75 dBm at 2.4 GHz; right where you need it most.
2 fixed omni-directional internal antennas for repeatable measurements.
SMA Switch selected Connector for 50 ohm DC isolated external antenna.
Linear Mode; 12 dB of weakest signal levels.
Log Mode; 60 dB full meter range.
MID Mode; high sensitivity with excellent dynamic range.
Analog Meter and Low / Peak LED Display:
The unique hybrid display makes this an extremely useful instrument for distant and night detection work.
As always a silent vibrator mode; for those times you need to be discrete.
The unique feature of the Zap Checker 300 is the ability to use special antennas and band pass filters through a SMA coaxial input connector. Depending upon the frequency and directionality of the externally connected antenna, the ZC 300 becomes a highly directional frequency-specific instrument which is ideal for counter-surveillance detection and for aligning transmitter/receiver antennas over far distances. The included 1.8 to 6.4 GHz LPDA antenna is quite directional and provides about 6 dB gain on axis within 5 degrees.

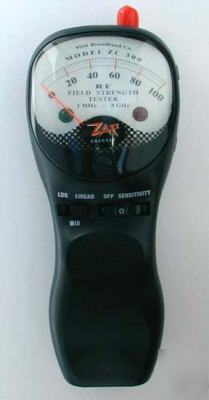

What you get, the Zap Checker 300 as shown with the 1.8 to 6.4 GHz LPDA.
One year manufacturer warranty.
