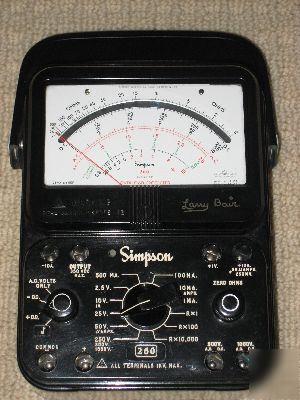

Simpson 260 series 8P volt-ohm-milliammeter
For Sale: Simpson 260 series 8P volt-ohm-milliammeter
Subject Simpson 260 series 8P volt-ohm-milliammeter
Ad is submitted by poster:
Unit is Volt, Ohm and Milliammeter.
This model takes the recessed jack type test leads.
Unit has an Ohms zero adjustment and an AC/DC Voltage Selector switch.
Unit has a 12-position function & range selector switch.
Unit has eight recessed probe jacks & an audible continuity selector switch.
The overload reset button is on the left side of the Simpson logo.
The transit position is the +D.C. position.
Two fuses are used in this model and are located between the batteries.
The 2 Amp and 1 Amp fuses are under the silver plate which rotates to allow removal.
Unit uses a single D Cell Battery (included) to power the R x 1 and R x 100 ohm ranges.
Unit also uses a 9V battery (included) to power the R x 10,000 ohms range and the overload circuits.
The batteries are accessed through a removable back cover with coin-slot screw.
This unit was used very little and is in excellent working condition.
UNIT COMES WITH ONE BLACK AND ONE RED 48" LONG TEST LEADS, TWO ALLIGATOR CLIPS AND AN OPERATOR'S MANUAL.
