Agilent 85107B , 10MHZ to 50GHZ network analyzer system
For Sale: Agilent 85107B , 10MHZ to 50GHZ network analyzer system
Subject Agilent 85107B , 10MHZ to 50GHZ network analyzer system
Ad is submitted by poster:

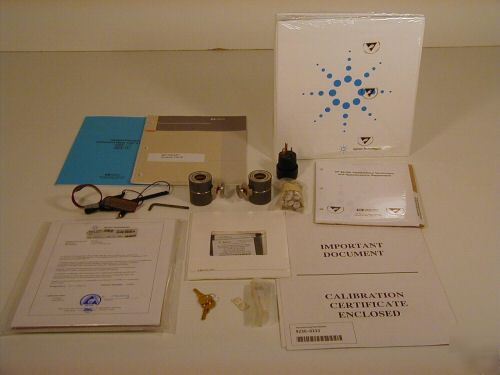

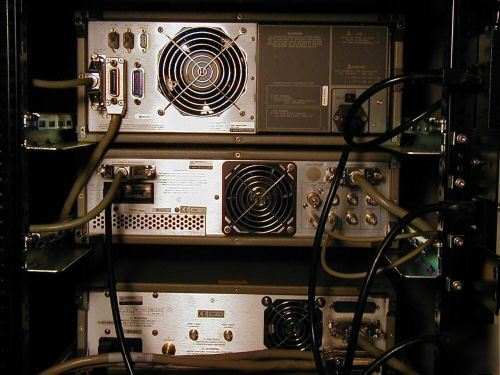

Agilent 85107B Network Analyzer System includes
HP 85043C System Rack Installation / User`s Manual
HP8510 Network Analyzer System Software Toolkit
HP8510 Specification & Performance Verification Windows Setup Disk
HP8510 Network Analyzer System Adjustment for the 85102A/B and Test Sets
HP8510C Performance Verification and Specifications Supplement
HP8510 Specification & Performance Verification Program and Data Disk
HP8517B S-Parameter Operating and Service Manual and software
Spare parts (screws,plug,wrist strap)
0.90 N.m 8lb-in 8710-1764 (20mm)
IF-Display Interconnect (1) 08510-60101
Test Set-IF Interconnect (1) 08510-60102
The Following accessories are NOT INCLUDED but may be available. We also have 20GHz (8510E) and 26.5GHz (8510SX) systems available. Email for more information
* 85056A 2.4 mm Calibration Kit
* 85056D 2.4mm Economy Cal Kit
* 85133F Cables(1) 22mm.(M) Flexible Test Port Cable
* 85133F Cables(1) 22mm.(F) Flexible Test Port Cable

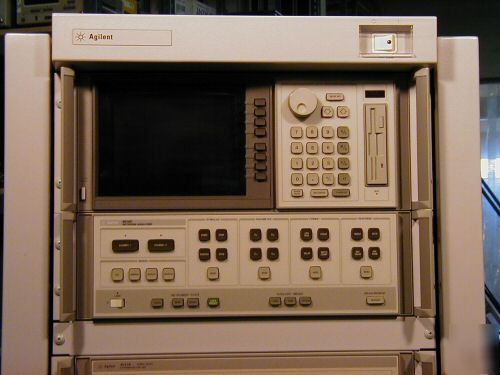

Agilent 8510C Vector Network Analyzer, 45 MHz to 110 GHz
The Agilent 8510C network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Agilent 8510C network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Agilent 8510C network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Agilent 8510C can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
Line-Reflect-Match calibration
Performance Characteristics of the 8510C
Programmability/Connectivity of the 8510C
Universal (Auto Sense and Switch

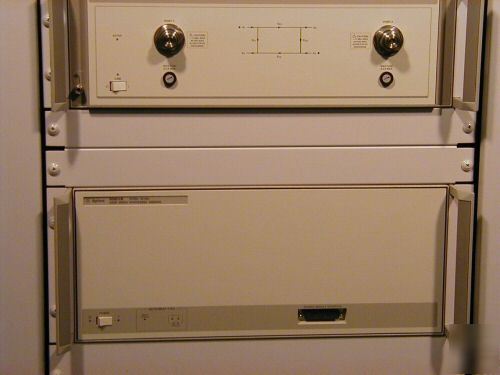

Agilent HP 8517B S-Parameter Test Set, 0.045 to 50 GHz, 2.4 mm
Several S-Parameter tests sets are available for the Agilent 8510C network analyzer for broadband coaxial measurements from 45 MHz to 50 GHz. The Agilent 8517B test set has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test sets include the ability to apply dc bias (external) to the test port center conductors
* Separate reference channel for each incident port
* Built-in electronic switch
Frequency Range 0.045 to 50 GHz
Nominal Operating Power Level:
Impedance, DC Bias: 50 ohm nominal, 500 mA, 40 Vdc maximum
Attenuation Range (incident signal):
RF Input Connector (rear panel)
Connector Type: 2.4 mm, female
Agilent 83651B is a used Sweep Generator with a 50 GHz range
The Agilent HP 83651B is a dedicated source optimized for use with Agilent HP 8510 systems. It combines the high performance and accuracy of a synthesized source with the speed and versatility of a sweep oscillator.
This source does not have modulation capabilities or a front panel keyboard and display.

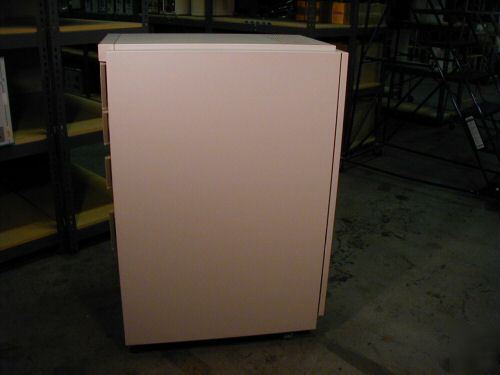

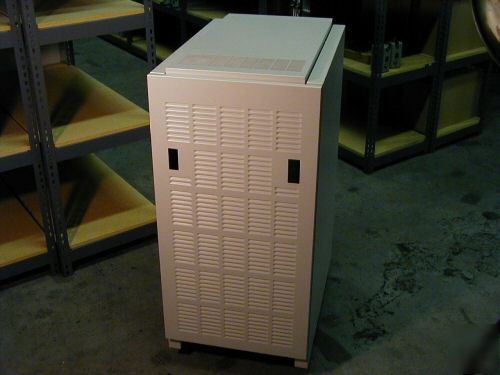

HP/Agilent E3661B-AW3 1.6m Rack Cabinet 32 EIA units.
* Vented top for better cooling
* Attractive quartz gray color
Questions about this item: email sales@alltest.us
Warranty: This unit is in excellent physical and working condition. I am offering a 30 day right of return to ensure your satisfaction.
