Meister TOP10 3 axis digital readout mill dro +3 scales
For Sale: Meister TOP10 3 axis digital readout mill dro +3 scales
Subject Meister TOP10 3 axis digital readout mill dro +3 scales
Ad is submitted by poster:

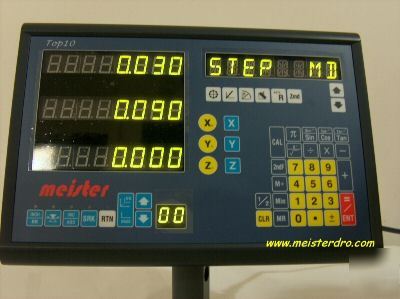

Meister TOP10 3 Axis DRO complete with linear glass scales for your Mill
Include 3 pieces of linear scales.
Linear scales travel stroke from 100 to 900mm.
[ Overall length of linear scale = Travel + 128 mm. ]
If you are not sure what you need for your mill, please email to me.
One year warranty direct from factory.
Display box swivel mounting arm & dust cover for dipslay box, and English or French User manual.
This mill belong to Summerton, Australia
This is X3 belong to David of Italy.
* HALF- selected axis display is divided by 2
* Absolute/Increment Co-ordinate Interchange
* Recall - recall the last X and Y positions.
* RTN - pause to go to normal mode and return to finish the job. Put the DRO to 'sleep' during break time.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure.
* Holes in a straight or oblique line
* Response Speed: 60m/min (198.6feet/min).
* Resolution: 0.005mm/0.0002".
* Quantizing error: +/- 1 count.
* Power Source: AC 110 - 220V, 50 - 60 Hz.
* Auto-switching power supply.
* Operating Temperature: 0 ~ 40 deg C,
* Display: 8 digits LED display; green color.
* Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm)
These photos are from Alan of France.
These photos are from Peter of Germany.
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: ±0.005 mm or 0.0002"(at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40 ins/sec.
* Output Signal: Two square wave signals. TTL.
Factor make linear scales with standard travel stroke of:
* 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 500, 520, 550, 570, 600, 620, 650, 670, 700, 750, 770, 800, 820, 850, 870, 900, 920, 950, 970, 1000, 1100, 1200, 1500, 1800 and 2000 mm.
* 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36, 40 and 80 inches.
This Bridgeport belongs to Holescreek (USA).
Image hosted by Photobucket.com
* Factory will take 2 ~ 3 days to process your order.
* Transit time is about 9 ~ 12 days to UK; subjected to delays at custom clearance.
* We take great care in packing your DRO/scale for a safe journey.
* Return accepted for refund or exchange.
