1-1/2" phi model no.420 hydraulic portable tube bender
For Sale: 1-1/2" phi model no.420 hydraulic portable tube bender
Subject 1-1/2" phi model no.420 hydraulic portable tube bender
Ad is submitted by poster:

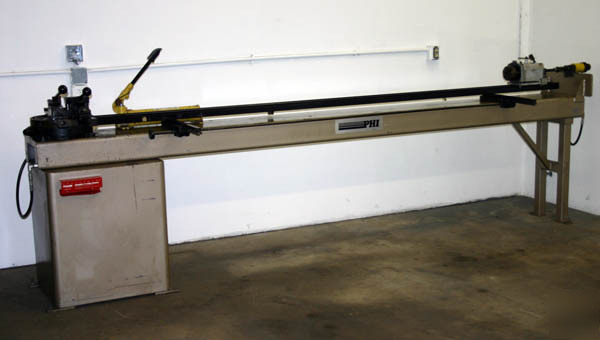

1-1/2", PHI Model No.420 Hydraulic Portable Tube Bender
Equipped with Mandrel Extractor with 10' tubing length
The Model 420 Precision Bender is a flexible and precise, manually operated "draw" or "rotary die" type machine designed and engineered especially for the needs of Aircraft Maintenance Crews.
It has a special gear-operated bend arm that will increase leverage 4 to 1 when bending heaver tubes. The bender head is bolted to a base plate.
The Model 420 is reversabel and may be set up for either right-or left hand operation.
Since it requires no outside power source, you can make precise and accurate bends anywhere in the field.
A PHI Model 420 bender rarely comes available used and especially one in as good of condition as this one. We purchased it from a Boeing Aircraft Plant that was closed due to consolidation. It appears to have had very little use.
New this bender sells for OVER $30,000 you can save Thousands NOW !!!
Reasonable offers considered !!!
See the descriptions and features below
SPECIFICATIONS - SUBJECT TO VERIFICATION:
* CAPACITY: 1-1/2" (38mm) OD x .065 (1.65mm) WT x2D minimum CLR. Above applicaton for material with 35000 PSI (241 MPa) yield, 35% elongation.
* DIRECTION OF BEND . Is reversible and may be set up for either right or left hand bending.
* BEND RADIUS: 8" (203m) centerline maximum
* BEND ARM MOVEMENT . 195 deg.(max.)
* TUBING LENGTH OVERALL MANDREL: 10 feet (3.05)
* MANDREL EXTRACTOR . Hydraulic, foot operated
* PLANE-OF-BEND SELECTOR: Includes an ajustable chuck and a 360 deg indicator to assit in the selection of the Plane of Bend.
* DEGREE-OF-BEND SETTING: A Postive adjustable stop ensures repeatability of 2 degree.
* OTHER CHARACTERISTICS: The machine has a special gear-operated bend arm that will leverage 4 to 1 when bending heavier tube. The machine comes with a built-in storage cabinet.
* MISC. TOOLING (AS SHOWN IN PHOTOS)
To go to the PHI Website: Click Here!
This item is in GREAT Condition!
Please feel free to call me to inspect and/or discuss anything you cannot see in the photos. Ask for Don (***)-987-4160
Also we encourage you to come and inspect this machine in person.
KEEP SCROLLING DOWN TO SEE ALL (11) PHOTOS !!!
To get a better idea of what the item really looks like please CLICK on the photos at the right to get a LARGER, clearer view
For anyone who is set up with Image hosting by Photobucket, the FREE ! internet phone service, our user name is Caltools; you can find us by running a search for Don Lewis Machinery.
* Approximate Weight: 900 lbs.
If you pick the item up at our location in Camarillo, CA we have a Forklift and can load your truck for free.
