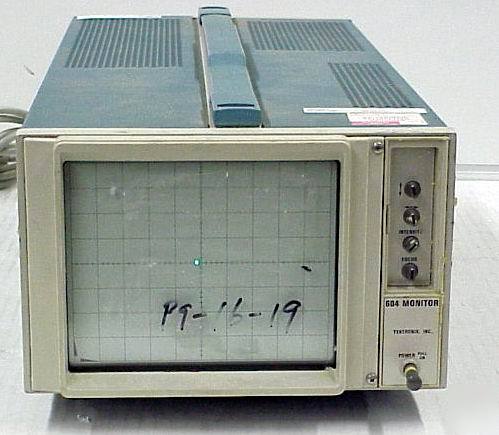

Tektronix TEK 604 Display Monitor
Tektronix TEK 604 Display Monitor
The 604 Display Monitor meets the requirements for pulse-height analysis, infrared detection, data communications systems testing, component and logic testing, vibration analysis, phase shifts and frequency ratios using Lissajous figures, and medical instrumentation.
* X and Y bandwidths: DC to 2 MHz at 3 dB down from 80% of full screen
* Deflection factor is nominally 1 V full scale
* Internally adjustable from 0.5 V to 2.5 V full scale
* Internal 5X attenuator extends the deflection factor range to 12.5 V full scale
* X-Y phase difference is not more than 1° to at least 500 kHz
* On the Z-axis, the bandwidth is DC to 5 MHz over usable range
* Adjustable sensitivity from +1 V to +5 V for full intensity control
* 0 V input cuts intensity off
SKU: AC389NRC00SN: B121131Loc:
