150MHZ oscilloscope probe scope probes 1X/10X
For Sale: 150MHZ oscilloscope probe scope probes 1X/10X
Subject 150MHZ oscilloscope probe scope probes 1X/10X
Ad is submitted by poster:
Tekpower 150 MHz Oscilloscope Probe, T6150
The Mastech T6150 is a passive high impedance oscilloscope probe designed and calibrated for use on instruments having an input impedance of 1M Ohm shunted by 18 pF. However, it may be compensated for use with instruments having an input capacitance of 10-35 pF. This probe incorporates a two-position switch which to select attenuation of X1 or X10.
Input Resistance 10M when used w/ oscilloscopes w/ 1M input;
Input Capacitance Approx. 11pF;
Compensation Range 10 to 35pF;
Working Voltage 600VDC incl. peak AC derating w/ frequency.
Input Resistance 1M (Oscilloscope Input);
Input Capacitance 46pF plus oscilloscope capacitance;
Working Voltage 600VDC incl. peak AC derating w/ frequency;
Safety conformed IEC-1010 CAT II;

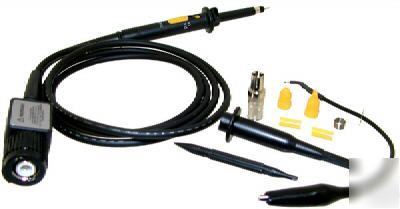

150MHz X1:X10 oscilloscope probe (1 piece);
Hook tip adapter (1 piece);
Ground lead clip (1 piece);
Probe Identifier Clips (2 piece);
Spare Probe Tip (1 piece);
Sprung Tip Adapter (1 piece);
BNC to Probe Tip Adapter (1 piece);
* Money Order / Cashier's Check
We DO NOT accept Personal or Business Checks
Local pick up is available with a $5 fee per item.
All Brand new items have 30 Days Satisfaction Guarantee.
