New steel pro stainless steel 130 gal pressure vessel -
For Sale: New steel pro stainless steel 130 gal pressure vessel -
Subject New steel pro stainless steel 130 gal pressure vessel -
Ad is submitted by poster:

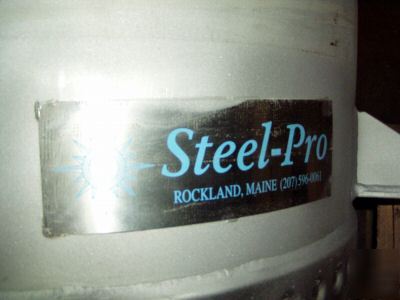

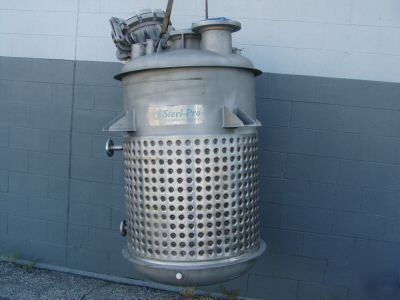

STEEL PRO PRESSURE VESSEL - WE HAVE TWO OF THESE IN STOCK
MADE OF 304 & 304L STAINLESS STEEL

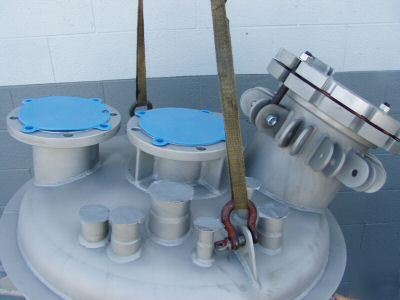

ALL TOP INLET NOZZLES 1" 2" 3" ARE CIP TYPE NOZZLES FOR EASY CLEANING AND FOR CLEAN ENVIROMENTS

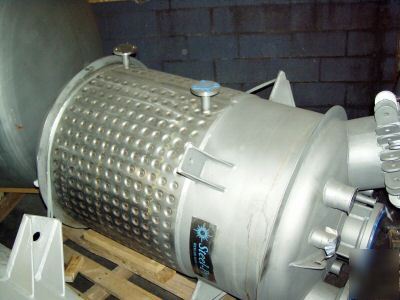

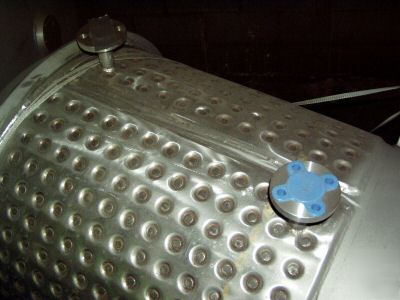

VESSEL HAS A STAINLESS STEEL DIMPLE JACKET FOR HEATING AND OR COOLING

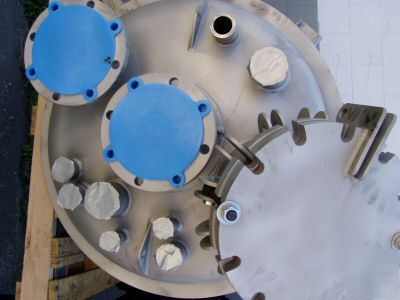

NOZZEL LOCATIONS ARE FROM THE 10" MANWAY TO CLOCKWISE ARE THE FOLLOWING:
NOZZEL @ 12" RADIUS 10" MANWAY IS CONSIDERED LOCATION TO BE 0 DEGREES.
(1) 1" INLET NOZZLE @ 0 DEGREES @ 9" RADIUS 6" TO STRAIGHT SIDE
(1) 2" INLET NOZZEL @ 0 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE
(1) 1" INLET NOZZLE @ 30 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE
(1) 3" INLET NOZZLE @ 45 DEGREES @ 9" RADIUS 6" TO STRAIGHT SIDE
(1) SUPPORT GUSSETT @ 45 DEGREES
(1) 2" INLET NOZZLE @ 60 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE
(1) 2" INLET NOZZLE @ 75 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE
(1) 6" 150LB. VENT INLET NOZZLE @ 135 DEGREES @ 12" RADIUS 9" TO STRAIGHT SIDE
(1) SUPPORT GUSSETT @ 135 DEGREES
(1) 2" INLET NOZZLE @ 210 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE
(1) SUPPORT GUSSETT @ 225 DEGREES
(1) 2" INLET NOZZLE @ 240 DEGREES @ 12" RADIUS 6" TO STRAIGHT SIDE

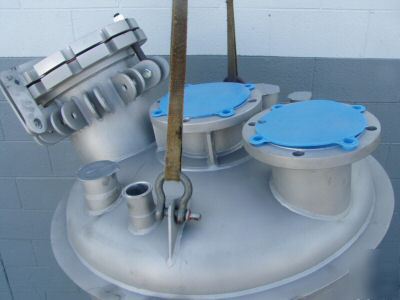

(1) 10" MANWAY W/ HINGED COVER 150LB. DESIGN @ 300 DEGREES 6" TO STRAIGHT SIDE
(1) SUPPORT GUSSETT @ 315 DEGREES
(1) 1" SIDE INLET TO JACKET - 150LB. DESIGN LAP JOINT FLANGE
(1) 1" SIDE OUTLET FROM JACKET - 150LB. DESIGN LAP JOINT FLANGE

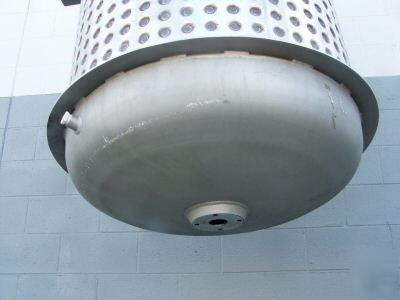

(1) 3/4" THREAD BOTTOM DISH SIDE OUTLET
(1) 2" BOTTOM PAD FLANE W/ CIP TAPER OUTLET
12" RADIUS FROM 6" CENTER INLET NOZZLE TO 6" 150LB. VENT NOZZLE
For packaging 1-149 pounds click the below brown letters link
For packages OVER 150 pounds or more use click onto the below blue USF HOLLAND link calculator
Enter 49444 in the Origin field
Enter your destination Zip Code in the Destination field
Enter 45% in the Discount % field
Enter the weight of the product in the Weight field
Press the Get rate quote button
NEW AND PREOWNED EQUIPMENT OF MANY TYPES. WE DO OUR BEST TO
DESCRIBE OUR PRODUCTS WITH ALL GOOD AND BAD OF THE ITEMS. WE
WILL DESCRIBE TO YOU ANY FLAWS OR DEFECTS TO THE ITEM TO MAKE
TOTAL SATISFACTION AND IT WILL BE MADE RIGHT TO YOU.
OUR NORMAL WARRANTY POLICY FOR ITEMS IS USUALLY 15 DAYS FROM
PURCHASE, BUT IF YOU HAVE A PROBLEM PLEASE FEEL FREE TO CONTACT
US FOR ANY HELP WE CAN EXTEND TO YOU. ON ELECTRICAL ITEM WE WILL
WARRANTY THEM FOR NOT BEING DEAD ON ARRIVAL (DOA). AFTER THE
WARRANTY PERIOD IF SOMETHING SHOULD GO WRONG PLEASE CALL. WE
WILL TRY TO HELP YOU WITH A REPLACEMENT PART IF IN STOCK.
WE ARE HERE TO SERVE YOU AND BY DOING SO WE WILL STAY IN
BUSINESS FOR MANY YEARS IN THE FUTURE.
ANY AND ALL EQUIPMENT OR ITEMS PURCHASED FROM US, MUST BE
UNLESS ARRANGEMENTS HAVE BEEN MADE WITH US AT OR BEFORE SALE DATE. AFTER THE 30 DAYS A SMALL SQUARE FOOTAGE RATE WILL BE IN AFFECT
