Ingersoll-rand aro pumps

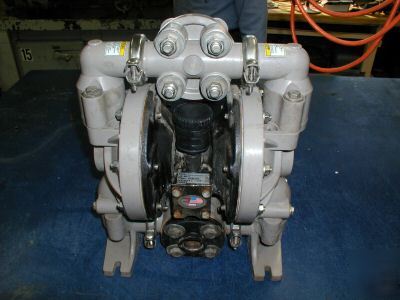

For Sale: Ingersoll-rand aro pumps
Subject Ingersoll-rand aro pumps
Ad is submitted by poster:
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
Refer to Model Description Chart" to match the pump material options.
637118-C for air section repair (see page 6).
637119-XX-C for fluid section repair (see page 4).
637167 abrasion resistant conversion kit is available for use in heavy
and abrasive material applications (see page 4).
. . . . . . . . . . . . see Model Description Chart" for -XXX".
. . . . . . . . . Metallic Air Operated Double Diaphragm.
. . . . . . . . . . . . see Model Description Chart".
. . . . Aluminum . . . . . . . . . . . . 19 lbs (8.62 kg)
Cast Iron . . . . . . . . . . . . . 31 lbs (14.06 kg)
Stainless Steel . . . . . . . . . 36 lbs (16.33 kg)
[add 8 lbs (3.63 kg) for cast iron air motor section]
. . . . . . . . . 120 p.s.i. (8.3 bar)
Maximum Material Inlet Pressure
. . . . . 10 p.s.i. (0.69 bar)
. . . . . . . . . . 120 p.s.i. (8.3 bar)
Maximum Flow Rate (flooded inlet)
. . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
Acetal . . . . . . . . . . . . . . . . . 10
E.P.R. / EPDM . . . . . . . . . . . -60
. . . . . . . . . . . . . . . . -20 to 150 F (-29 to 66 C)
Neoprene . . . . . . . . . . . . . . 0
Nitrile . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . 35
Polyurethane . . . . . . . . . . . . 10
PVDF . . . . . . . . . . . 10 to 200 F (-12 to 93 C)
. . . . . . . . . . . . -40 to 225 F (-40 to 107 C)
PTFE . . . . . . . . . . . 40 to 225 F (4 to 107 C)
. . . . . . . . . . . . . . . . -40 to 350 F (-40 to 177 C)
. . . . . . . . . . . . . . . . see page 8.
Noise Level @ 70 p.s.i., 60 c.p.m.
* The pump sound pressure levels published here have been updated to an Equivalent Continuous
Aeq) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
FLUID SECTION SERVICE KIT SELECTION
Fluid Section Service Kit # 637119-61-C
2 - 316 Stainless Steel 5 - Carbon Steel
3 - Polypropylene 8 - Hard 440 Stainless Steel
1 - Neoprene 3 - Viton 9 - Hytrel
2 - Nitrile 5 - E.P.R. B - Santoprene
0 - Aluminum, N.P.T.F. 2 - Aluminum, BSP
1 - Cast Iron, N.P.T.F. 3 - Cast Iron, BSP
Fluid Cap / Manifold Material, Inlet / Outlet
(Steel Hardware) (Stainless Steel Hardware)
0 - Aluminum, Single A - Aluminum, Single
1 - Stainless Steel, Single B - Stainless Steel, Single
2 - Cast Iron, Single C - Cast Iron, Single
9 - Stainless Steel, Dual D - Stainless Steel, Dual
