Hioki 8731-10 waveform comparator - hti
For Sale: Hioki 8731-10 waveform comparator - hti
Subject Hioki 8731-10 waveform comparator - hti
Ad is submitted by poster:
"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment"

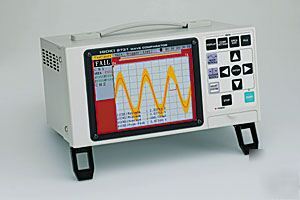

*Hioki 8731-10 Waveform Comparator - HTI *
Easy installation into production lines for high speed measurement and assessment
Compare the signals of manufactured components and devices with a memorized
reference signal to conduct GO/NG evaluations on a waveform level
2ch input/2ch simultaneous comparison
Connect to a PC via LAN for networking capabilities
Measurement ranges 100 mV to 5 V/division, 6 ranges (10 division f.s.)
Frequency characteristic DC to 400 kHz ±3 dB
Number of input channels Analog 2 channel
Memory capacity 12bits × 50 k words/ch
Time axis 100 µs to 5 minutes/division, 20 settings (1 division =100 samples)
external sampling (up to 1 kHz, minimum sampling period 1 ms)
Measurement functions Memory recorder with Wave Comparator
Data storage PC card Type II slot (9726/ 9727/ 9728/ 9729 PC card, 128MB to 1GB)
Interfaces RS-232C LAN (10BASE-T) External I/O
Display 7.2-inch STN color LCD
Power supply 100 to 240 V AC (50/60 Hz)
Dimensions, mass 288 mm(11.34 in)W × 144 mm(5.67 in)H × 190 mm(7.48 in)D,
Accessories Power cord(1), Wave viewer software(1)
GOODS: ALL our items are FACTORY NEW
