Fpga / sopc (niosii) development kit altera cyclone lcd
For Sale: Fpga / sopc (niosii) development kit altera cyclone lcd
Subject Fpga / sopc (niosii) development kit altera cyclone lcd
Ad is submitted by poster:

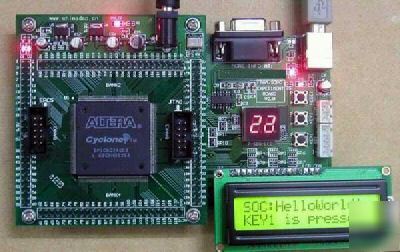

FPGA / SOPC (NiosII) Development Kit ALTERA CYCLONE LCD
Learning FPGA design technology
Understanding NiosII programmable system on a chip design process, in the study, including customized FPGA 32 bit processors, DSP processing module, logic function modules of the system components, such as the study of the use of ALTERA software company Integrated Development Environment (NIOS IDE) design, system-on-chip debugging software
FPGA core board can be used for preliminary design of the rapid assessment system design.
* FPGA core board: 64 Mbit (8M byte) + 16Mbit SDRAM (2M byte) Flash + + Active EPCS1 clock. FPGA core model EP1C6Q240C8, active for 25 Mhz clock (use lower external clock source, to make full use of internal PLL frequency in the internal FPGA, reducing its external environment interference)
* USB functions, a USB-UART bridge chip, compatible with USB1.1 and USB2.0 agreement, the maximum rate of 1 Mbps communications, and anti-good performance, can be used directly in communication rate is not very high demands of the occasion, such as industrial control equipment, instrumentation, convenient and practical
* Two digit 7-segment LED display.
* The two RS232 serial ports, one for the DR-9 interface, a 3-pin socket interface for different occasions
* 1602 character LCD interface
* I2C interface EEPROM welding of one to facilitate the students need to add EEPROM
* LED display lights two (in the core board), the general state for debugging process, facilitate debugging - only two more of a waste of IO pins can be streamlined
* Button three, uphold the same simple style;
USB cable (version 2.0 only a USB cable)
