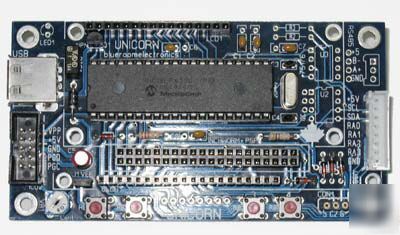

Unicorn usb experimenter
For Sale: Unicorn usb experimenter
Subject Unicorn usb experimenter
Ad is submitted by poster:
* MPLAB compatible USB upgrade for the Inchworm+ (simply snaps to the bottom of the Inchworm+)
* Many times faster than the RS232 version of Inchworm
* Uses your USB port for power 250ma max* to power itself, Inchworm+ and your target project.
* For extra power use the Inchworm+ onboard power supply 1A max
* Uses MPLAB firmware client driver
Unicorn can transform in to a USB Experimenter...
* 128x64 GLCD connector with backlight control
* 2x16 LCD with backlight control
* USB port for fast communications
* I2C option with socket for 24LCxxx EEPROM
* 4x4 keypad connector option
* iButton / 1 Wire connector
* ICD2 Inchworm connector for reprogramming & debugging
* * Although USB can supply up to 500ma, 100ma is the maximum recommended. There is a 250ma self resetting thermal fuse on Unicorn.
Here's the Unicorn Assembly Instructions at blueroomelectronics.com.
This is an unassembled kit; it includes all parts.
