Shell and tube heat exchanger 45-480 horizontal 304SS
For Sale: Shell and tube heat exchanger 45-480 horizontal 304SS
Subject Shell and tube heat exchanger 45-480 horizontal 304SS
Ad is submitted by poster:

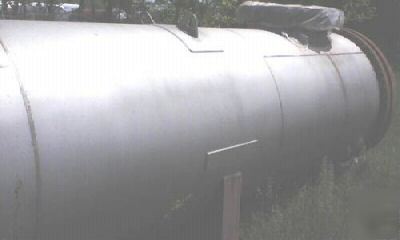

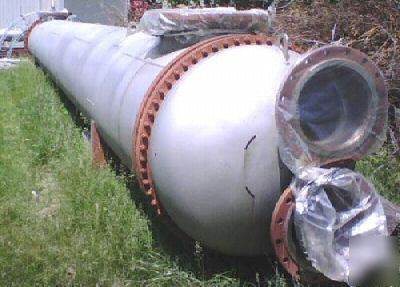

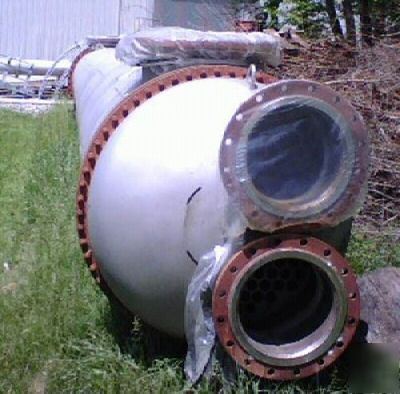

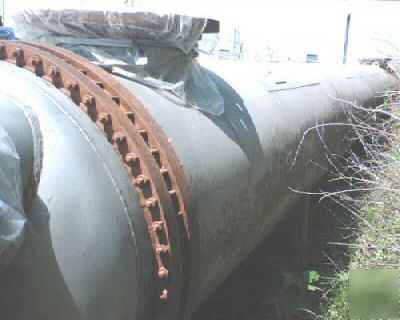

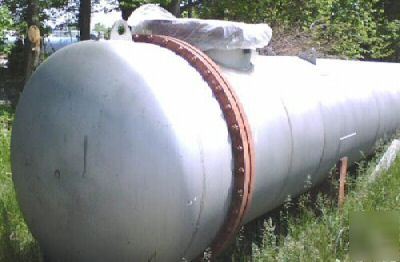

NEW TYPE BES 45-480 HORIZONTAL SHELL AND TUBE HEAT EXCHANGER
5,073 SQ. FT. SURFACE AREA, OF 304 STAINLESS STEEL CONSTRUCTION
WITH 244 EACH 2" OD SA249-304 SS TUBES X .065" WALL X 40' LONG
TUBE SIDE FOUR (4) PASS DESIGN FOR FULL VACUUM AND 75 PSIG
SHELL SIDE SINGLE PASS DESIGN FOR 15 PSIG
BUILT IN ACCORDANCE WITH ASME CODE SECTION VIII, DIVISION I, AND TEMA C
You may pick the item up any time between 8am-5pm, just call first to discuss details. (***)-855-6555 ext 3246, ask for John.
