Professional ultrasonic thickness gage um-1 *best deal*
For Sale: Professional ultrasonic thickness gage um-1 *best deal*
Subject Professional ultrasonic thickness gage um-1 *best deal*
Ad is submitted by poster:
Reads in both mm and inch, with 0.001 inch high display resulotion.
Compact Design with Comfortable and Durable Structure

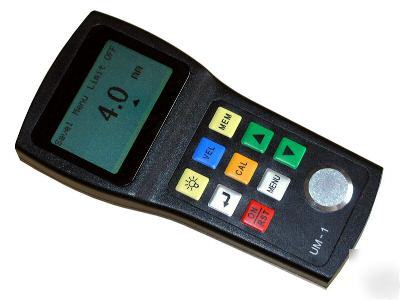

The UM-1 is a simple to use, high accuracy, hand-held Ultrasonic Thickness Gauge. It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features reliable, repeatable and stable reading, high accuracy (0.05 mm or 0.002 inch), high resulotion and convenient data display (in both millimeter and inch). It also provides ease of operation and wide measuring range, with low power consumption (with normal AA batteries). These features make UM-1 unequalled in its performance as well as its value!
**Get Precise Thickness Data in Seconds**
** The Best Price in the Market **
We offer you 20% off if you find the cheaper one
!! One Year World-Wide Warranty !!
~~ $39.00 extra for extended warranty for TWO Years ~~
~~ 30 days Money Back Gaurantee ~~
if you are not satisfied with our products
email us if you have more concerns about the product and warranty for this item.
1. Main Processor with built-in Calibration block (4.0 mm)
2. Standard Probe - Display in mm and inch, Probe end Diameter: 10.00mm
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6. Foam-Fitted Carrying Case to provide the best protection for the gauge
8. Four-Step (Five-Level) Calibration Block (optional)
9. Rubber Protective Case for the main unit (optional)
* Metal Materials: Al, Fe, Stainless Steel, Cu, Brass, Zn, Ag, Au, Sn,....
* Acrylic Resin, Water Glass, ...
* Other materials with known sound velocity values.
Measuring method: Ultrasonic pulse echo
Measuring range: 0.8 - 300.0 mm depending on the probes (1.0 - 200.0 mm with Standard Probe within the package)
Display Resolution: 0.001 inch (or 0.1 mm)
Sound velocity range: 1,000 - 9,999m/s
Memory capacity: Store up to 500 test values
4 digital LCD display with advanced backlight
Automatic power-off after being idle for 4 minutes
Two Points Calibration available
Power Supply: 2 X 1.5V AA Standard Batteries
Working temperature: -0 ºC ~ +50 ºC
Dimension: 149 mm X 73 mm X 32 mm
Weight: 168g (main unit); 30g (probe)
Optional Rubber Protective Case at an extra cost of US $29.00
Optional Four Step Five Level Test Block at an extra cost of US $39.00
* ALL SALES ARE FINAL AND NON-CANCELLABLE.
* Any inquiry please email us or "Ask Seller a Question".
Thanks for looking and Ordering!
