New * heavy L7200 post hole digger & 3 augers tractor
For Sale: New * heavy L7200 post hole digger & 3 augers tractor
Subject New * heavy L7200 post hole digger & 3 augers tractor
Ad is submitted by poster:

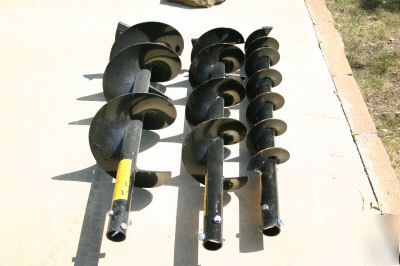

* New Heavy L7200 Post hole Digger & 3 Augers Tractor

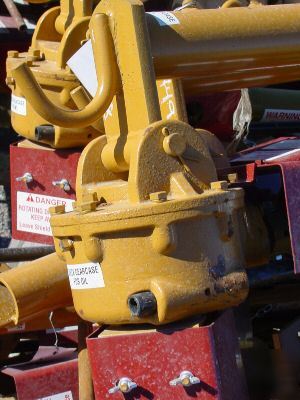

New Leinbach L7200 Post Hole Digger
Assembly Information: To attach the A-frame with the lift pins to the boom pole put the bolt provided, into the middle adjustment hole on the boom pole. For adjustment to your tractor, you may have to move a A-frame to another hole so the auger will lift clear of the ground. Tighten the bolt, but not excessively. This allows the A-frame to pivot when the digger is raised and lowered by the tractor. Slide the socket of the lower LEFT lift arm of the tractor over the lift pin on the A-frame, then slide the right lift arm onto the right lift pin, using the tractor's right adjustment crank lever to position the lift arm at the correct height. Now attach the boom to the tractor where the top-link mounts behind the tractor seat. The top link is not required for operation. Stablizers should be used to prevent side motion (available from your tractor manufacturer or store) Remove both sides of the auger safety shield and take out the auger shear bolts from auger. Use the tractor to raise the boom pole until you are able to side the auger onto the gearbox output shaft. Now lower the lift on the tractor to slide the output shaft inside the auger. Keep hands clear of the auger in case of lift failure to prevent pinching of operator's hands between the auger and the digger. Align the hole for the shear bolt and replace the shear bolts. Tighten lock washers and hex nuts. (CAUTION: USE OF SHEAR BOLT HARDER THAN GRADE #2 COULD CAUSE DAMAGE TO YOUR GEARBOX). Note: A longer or protruding shear bolt is more likely to grab loose clothing or gloves, which can result in serious injury or death. Replace two halves of auger safety shield and secure with wing nuts. Depress the locking spring on the PTO Shaft and slide coupler onto tractor output shaft until the PTO locking pin clicks in place. Make sure set screw is tight on PTO shaft at gearbox. The setscrew holds the PTO shaft on the gearbox shaft if the PTO shear pin breaks. Fill gearbox with 90W gear oil. Unscrew 1/2" fill plug on top of gearbox and 1/4" overflow plug on side. Fill until oil runs out of side plug (about 1qt). Install both plugs. Grease the PTO universal joints; the metal PTO shaft and spray lube the plastic cover tube so that both will slide in and out freely. Fasten chain on plastic PTO cover at gearbox to the hole in side PTO shield. Fasten PTO chain at the tractor end of the cover to the lift arms of the tractor. This allows the shaft to turn but the outside plastic shield remains stationary to protect the operator from becoming entangled in the PTO shaft and thus causing personal injury.
[[Taxes only apply to person's living in Oklahoma. If you live in Oklahoma and don't want to pay taxes, then you must have an Oklahoma Tax Number " Farm or Resale".]]
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Jerome Simpson
