6.5X - 60X high ratio zoom stereo heavy boom microscope
For Sale: 6.5X - 60X high ratio zoom stereo heavy boom microscope
Subject 6.5X - 60X high ratio zoom stereo heavy boom microscope
Ad is submitted by poster:
BoomMicroscopes is a name you can trust. We specialize in providing high quality boom mounted microscope systems for use in circuit board repair, quality control, and surface mount device work. These microscopes are also excellent for engraving, document examination, and many other applications requiring specimen magnification over a large working area. Call us today to discuss your particular application so we can recommend a microscope that fits your needs. Toll Free (***)-215-3795.
Search in titles & descriptions
* Boom Stand Mounted Stereo Trinocular Zoom Microscope!
* Great for Repair of Small Items or for Circuit Board Repair and Rework!
* Bright and Clear 3-D Stereoscopic Images through High Quality Zoom Optics!
* Great Economical Price! Priced Hundreds Lower than Competition!
| Trinocular Photography Port
* Photograph Your Own Specimens!
* Have Your Own Complete Digital Video Microscopy System!
* Capture Images With Your Computer!

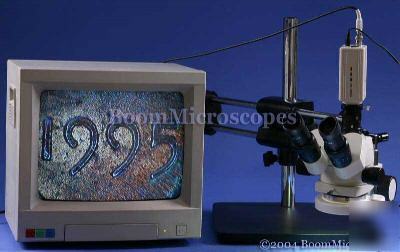

* Display Images on a High Resolution CCTV Monitor or Television!
* Videotape What You See Under the Microscope!
* Versatility - Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
* Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
* Extra Large Glass in Eyepieces for Ease of Viewing and Less Eyestrain. The Glass Itself is 1 Inch Diameter!
* Extra Sturdy Boom Stand for Maximum Versatility and Working Area!
* The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
* Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.
| Eyepieces and Magnification
* Excellent High Ratio Zoom Range (Without Changing Eyepieces): 6.5x - 60x Continuous Magnification, With Included 30mm Wide Field 10x Eyepieces.
| Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 55 to 70mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Includes Fluorescent Ring Light for Bright and Even Illumination.
| Focusing and Working Distance
* Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
* Rack and Pinion Steel Gears for Focus Movement.
* Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 100mm (4 Inches).
| Frame - Base - Size - Weight
* Heavy Solidly Built Boom Stand.
* Solid Steel Boom Stand Base Plate.
* Includes Rubber Eye Guards for Blocking Stray Light.
* Optional Eyepieces to Increase Magnification.
* Optional Bottom Lens to Increase or Decrease Magnification or Change Working Distance.
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
| 5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
This system is capable of this type of connection.
Click thumbnail photos to enlarge
Photo Taken Thru Trinocular Port
Photo Taken Thru Trinocular Port
All images taken using this Microscope!
Taken by our In-house Technicians.
Copyright © 2005 Boom Microscopes.
All photos, style, and text are copyrighted by Boom Microscopes. Any unauthorized infringement will be pursued with legal action.
