Tektronix 466 2 ch storage oscilloscope 100 mhz nice
For Sale: Tektronix 466 2 ch storage oscilloscope 100 mhz nice
Subject Tektronix 466 2 ch storage oscilloscope 100 mhz nice
Ad is submitted by poster:
Tektronix 466 2 channel Storage Oscilloscope 100 mHz
The Tektronix 466 oscilloscope is a dual channel, portable oscilloscope. The 466 storage system provides storage for displays with a writing speed up to 3000 divisions/microsecond. (in the Fast-Reduced Scan mode). Storage view time greater than 15 seconds at full-stored display intensisty - extending to more than 6 minutes using reduced intensity in the Save mode.
The dual-channel dc - 100 mHz vertical system provides calibrated deflection factors from 5mv to 5 volts/division. The sweep trigger circuits are capable of stable triggering over the full bandwidth capabilities of the vertical deflection system. The horizontal deflection system provides calibrated sweep rates from .5 sec to .05 usec/division along with delayed sweep features for accurate relative-time measurements. A x10 magnifier extends the calibrated sweep rate to 5 nanosecs/division.
SERIAL NO: B137568 ( near end of production)
SENSITIVITY: 5 V to 5mV/division (with 1X probes), panel marked for both 1X and 10X probes.
SWEEP RATE: 50 ns/div to 5 sec/div, plus 10X magnifier.
CONDITION: Refurbished, calibrated, painted. excellent appearance
FEATURES: Dual trace, X/Y capability. Bandwidth to 100+ Mhz, A/B delayed sweep, sweep magnifier, mixed timing modes, versatile triggering.
Contact me for more information Toni_oneil@repair--parts.com

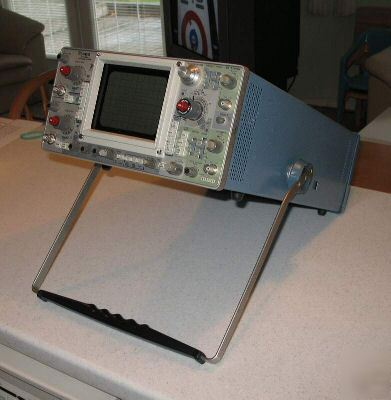

ALL PICTURES ARE OF THE ACTUAL OSCILLOSCOPE FOR SALE
465, 466 and 2235 with 1usec pulse train.
465, 466 and 2235 with 1usec pulse train.
OUR WARRANTY POLICY HAS CHANGED. OSCILLOSCOPES ARE NOW COVERED IN THE FOLLOWING WAY:
THE 30-DAY RETURN PRIVELEDGE ON OSCILLOSCOPES AND MOST OTHER EQUIPMENT WILL BE IN FORCE.
ARE AUTOMATICALLY INSURED FOR THEIR FULL VALUE.
