Tektronix 2246A 100 mhz 4 channel digital oscilloscope.
For Sale: Tektronix 2246A 100 mhz 4 channel digital oscilloscope.
Subject Tektronix 2246A 100 mhz 4 channel digital oscilloscope.
Ad is submitted by poster:

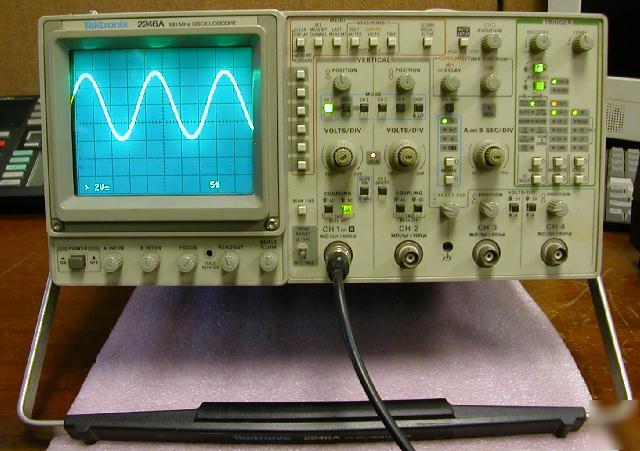

Tektronix 2246A 100 MHz 4 Channel Digital Oscilloscope.
Min. Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 5 V/div
Vertical(or Deflection Factor) Accuracy 2 %
Maximum Input Voltage 400 V(dc+p
Main time base - lowest 0.5 s/div
Main time base - highest 20 ns/div
B Sweep Time Base (low) 5.0 ms/div
B Sweep Time Base (high) 20 ns/div
The 2246A Oscilloscope with voltmeter can greatly reduce time consuming tasks by use of it's SmartCursorsâ„¢ feature. You can track measurements, visually indicate trigger level and ground, and make time measurements with cursors or alternate delayed sweep Delta Time. Offers CRT readout and measures +peak, -peak, peak-to-peak, DC, and gated volts. Four channels, 100 MHz bandwidth with 2 ns/div time base, on screen scale-factor readouts, flexible triggering including auto level and TV Line TV Field.
Please feel free to email with any questions.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Ericka Gross
Contact: egross@repair--parts.com (Ericka Gross) (this is a temporary forwarding address).
