Nakamura tome tmc 35X 4-axis cnc turning center (2126)
For Sale: Nakamura tome tmc 35X 4-axis cnc turning center (2126)
Subject Nakamura tome tmc 35X 4-axis cnc turning center (2126)
Ad is submitted by poster:

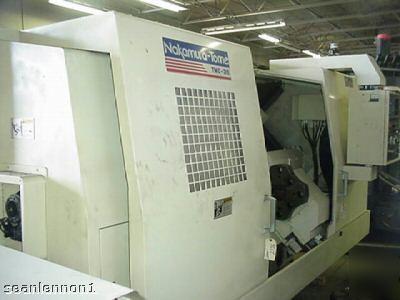

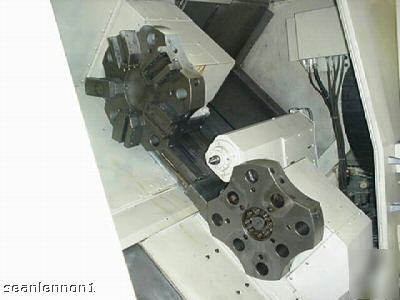

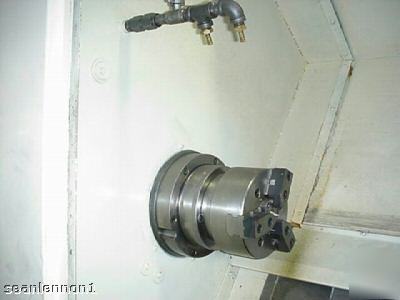

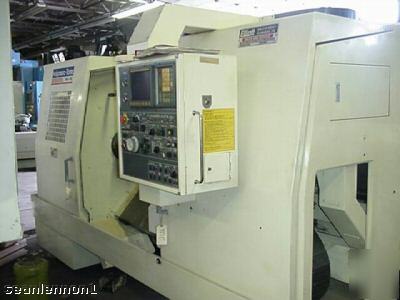

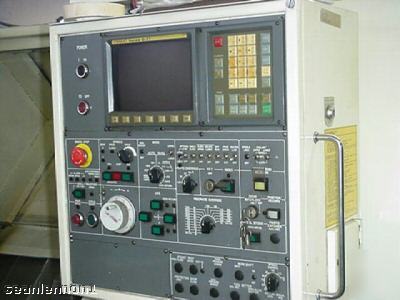

Nakamura Tome TMC 35x 4-Axis CNC Turning Center With Fanuc OT Control new 1992 Machine Specifications... Bed design: 45 slant... Spindle nose to tailstock center: 53.l5/l6.93 Max.Min... Swing over slide covers: l9.69â€... Upper Turret... Swing over saddle: l2.99... Maximum turning diameter/length: l2.99â€/32.76â€... Distance between main spindle... nose and turret face (max/min.) 4l.73â€/7.87â€... Lower turret Swing over saddle: 6.50â€.... Maximum turning dia/length: 6.50â€/30.79â€... Distance between main spindle nose and turret face (Max/Min): 39.76â€/7.87â€... Spindle nose: Al-8. . . Spindle Bore: 3.l5â€... Collet capacity: 2-l/2â€... Bar capacity: 2.56†(hole thru draw tube)... “x†Axis travel (UT/LT): 9.l5â€/5.l2â€... “Z†Axis travel (UT/LT): 33.86â€/3l.89â€... Spindle motor AC Va. Freq.: 25/30 HP 30 Min.... Speed range: l0-3,500 rpm... Rapid traverse rate “x†Axis: 472 IPM .. “z†Axis: 590 IPM... Positioning accuracy (“xâ€, “z†axis): 0.0002â€... Repeatability (“xâ€, “z†Axis): 0.000079â€... Turret capacity Upper Turret: l0 Tools .. Lower Turret: 8 Tools... Tool size, Square: l.0†x l.0†... Round: l-3/4â€... Equipped with: Chip Conveyor... Mist Collector... High Pressure Coolant...
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Greg Chapman
Contact: g.chapman@repair--parts.com (Greg Chapman) (this is a temporary forwarding address).
