Metering pump 4.5 gph - 58 psi prominent BT5A 0420
For Sale: Metering pump 4.5 gph - 58 psi prominent BT5A 0420
Subject Metering pump 4.5 gph - 58 psi prominent BT5A 0420
Ad is submitted by poster:

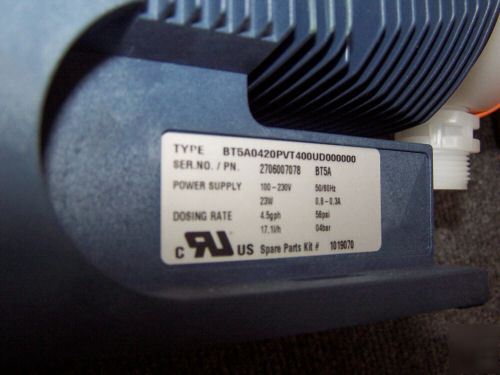

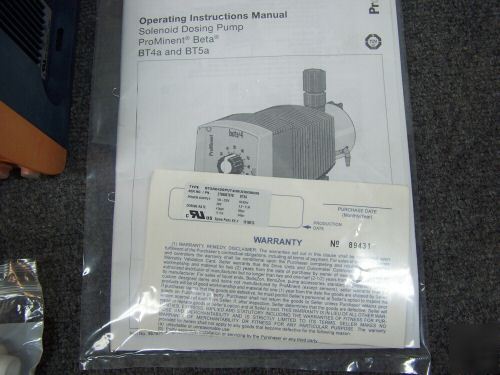

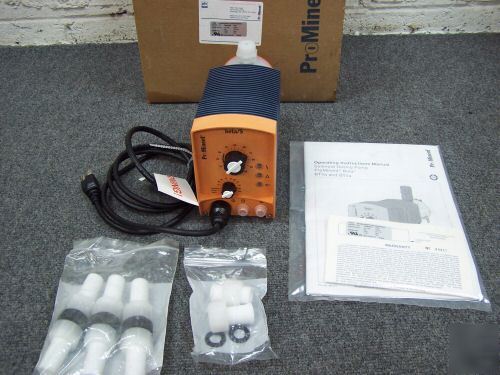

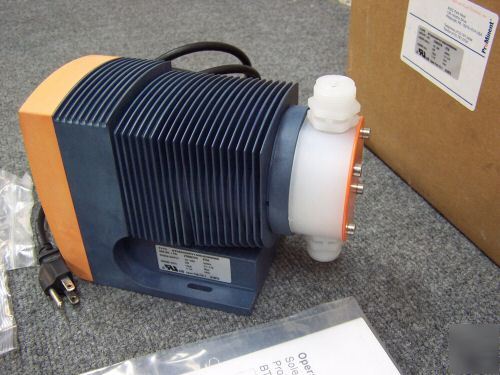

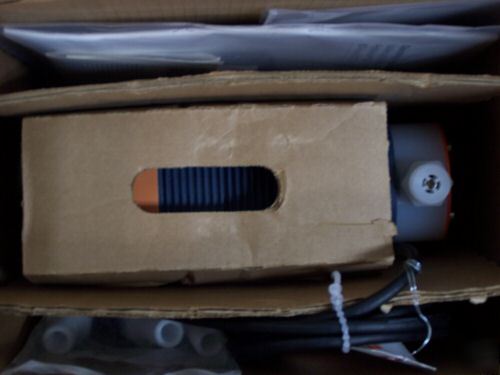

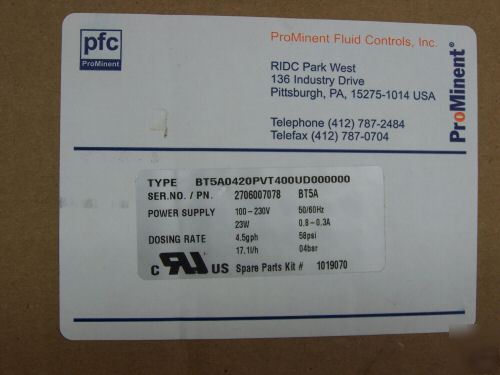

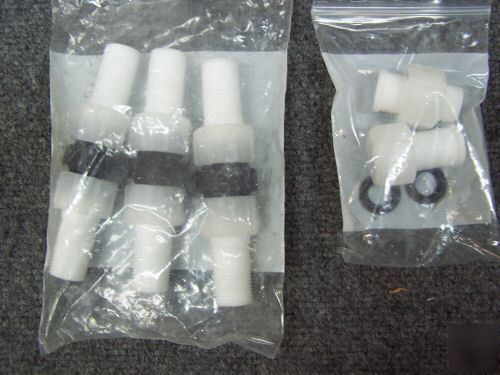

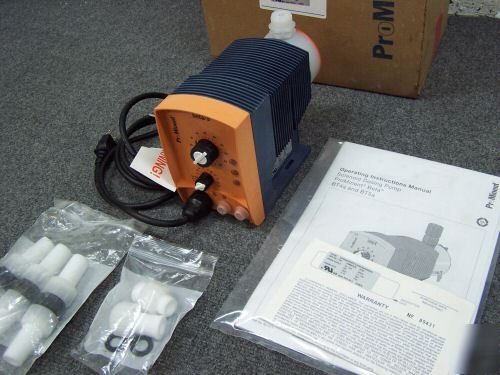

" Folks up for your consideration is a brand new in the box ProMinent Solenoid Diaphragm Metering Pump ( 4.5 GPH) (58 PSI) 120 volt .This pump is 100% complete with manuals, fittings ,box Model # BT5A 0420 pvt 400ud 000000. This pump was purchased brand new but never used. Any Questions please call Thanks Rick (***)-970-0933
Beta® Solenoid Diaphragm Metering Pump
Beta series offer all adjustment and control functions required in modern water treatment. Easy operability is granted with the multi-function button for all electric control functions and the stroke length adjustment button for the volume per stroke.
* Fast and safe pump adjustment
* Constantly high process and product quality

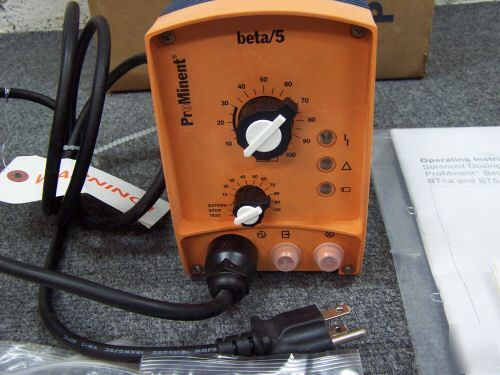

* Clear status notice via 3 LED displays
* Monitoring of chemical stock via input for double-stage level switch with advance warning
* Quantity-based chemical addition in water treatment, control via contact water meter
* Measuring-value dependent chemical addition in e.g. swimming pools
* Time-controlled chemical addition in cooling water circuit
* Pulsation controlled dosing when bottling small volumina
* Capacity range 0,74-32 l/h, 16-2 bar
* Infinite stroke length adjustment 0 to 100 % (recommend percentage: 30 to 100)
* Stroke frequency adjustment in 10 steps 10 to 100 %
* 3 LED displays for operation, alert and failure notice
* Dosing head materials PP, perspex/PVC, PVDF, PTFE, stainless steel
* Patented coarse/fine ventilation with PP, PVDF and perspex/PVC
* Self-ventilating dosing head in PP and perspex/PVC
* HV dosing heads for higher viscous media
* External control via potential-free contacts
* External frequency adjustment on maximum frequency
* Connection for double-stage level switch
* Edition for extra-low voltage 12-24 V DC, 24 V AC
* CANopen bus interface for DULCOMARIN® II
* Polypropylene: Very price-worthy version, resistant to a high number of acids and brines. Typical application areas: water treatment applications
* Acrylic: High resistance against Sodium Hypochlorite and has the advantage that the dosing process can be seen through the translucent dosing head. Trapped air or cristalline sediments can be recognized and removed.
* PVDF: Resistant against concentrated and oxidizing acids and brines. Price-worthy alternative to PTFE.
* PTFE: Especially suitable for the dosing of high-concentrated and oxidizing acids and brines.
* Stainless steel: Most suitable for the dosing of solvents and oil-like fluids.
For strongly outgasing media ProMinent offers self-ventilating dosing headsin PP and perspex.
This universally applicable pump grants an excellent cost/performance ratio. Either foot or dosing valve - as per demand - being included in delivery.
Beta Dosing pumps with self-ventilating dosing heads
Materials in touch with the medium during operation
DEVELOPAN® dosing diaphragm with PTFE-coating.
