For Sale: Tormach tooling system manual operator's set


Subject Tormach tooling system manual operator's set
Ad is submitted by poster: Manual Mill Operator's Set (Starter Kit)
Manual operations benefit from quick change, reduced clearance, and increased rigidity. This is a basic set that will introduce users to all of those features. The manual mill operators set will improve productivity in manual milling. The set has 4 tool holders. The set is discounted 20% from the price of the individual pieces.

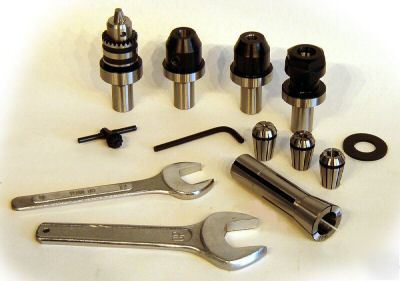

Manual Mill Operators Set $215
* 1 each 1/2” Set Screw Adaptor
* 1 each 3/8” Set Screw Adaptor
* 3 each ER20 Collets (1/8”, 1/4” and 3/8”)
* 1 each JT1 Adaptor and Drill Chuck
* 1 each Precision TTS-R8 collet
* Various wrenches, heavy cut adaptor, and instructions.

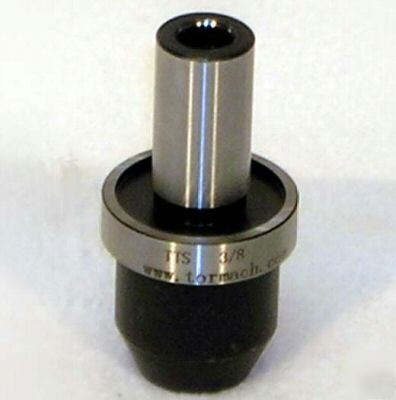

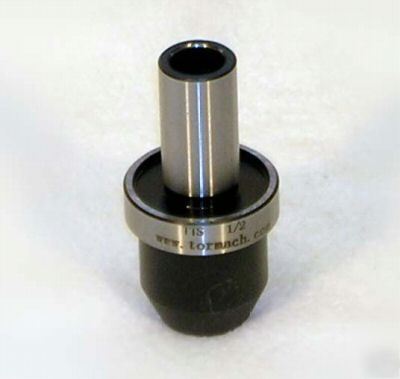

The 3/8” and 1/2” set screw adaptors are intended to be used with end mills that have a Weldon flat on them. They can also be used with certain Silver & Deming style drill bits. Make certain that the set screw is on the flat of the tool and never attempt to hold tooling without a flat.

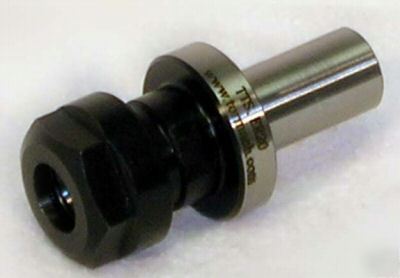

The ER20 collet holders are recommended if you are using 1/4” or smaller cutters that are based on a larger shank diameter, even if the shank offers a Weldon flat for mounting. The set screw holders will work for this application, but the tool will last longer and the machined finish will be better when using an ER20 holder.

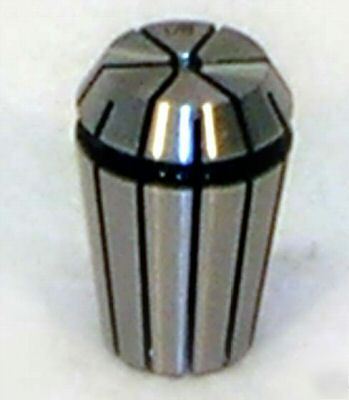

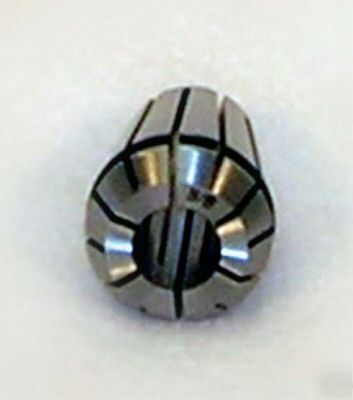

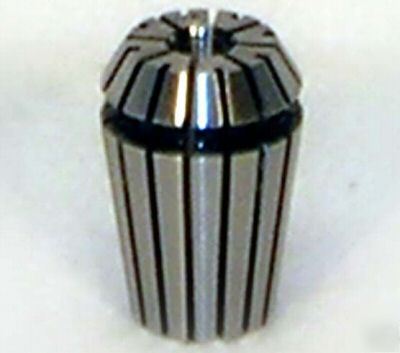

The ER20 collet is a self-extracting style. This means that the collet must be mounted into the nut first, then the nut and collet assembly are put into the collet holder. If these steps are not taken the collet and/or nut may be damaged and there will be very little holding capacity of the collet. A close inspection of the collet nut will reveal that it is not symmetrical. An area of the retaining ring is cut away. With the collet held at an angle, it is tipped into the cut-out area and will snap into place. With the collet correctly mounted in the nut, the collet will be pulled forward and out of the collet holder taper when the nut is slightly loosened, resulting in self-extraction.

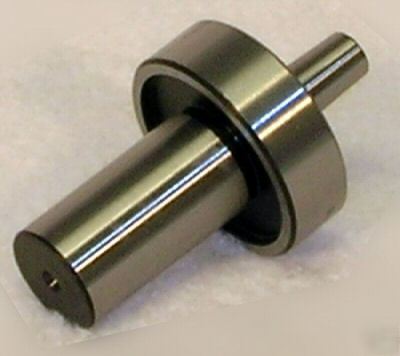

Jacobs taper adaptors are used to mount Jacobs taper drill chucks. Do not use Jacobs taper adaptors when edge milling or other processes that apply forces from the side.

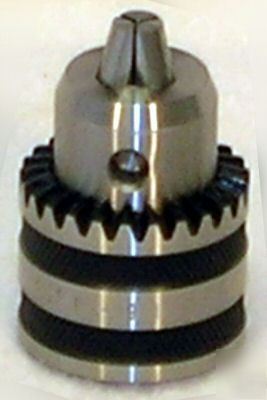

Mounting a chuck on a taper adaptor is a simple matter of pushing the adaptor onto the chuck. It is important to remove any oil or grease on both the taper adaptor and the socket in the chuck before putting them together. A cotton swab and a little rubbing alcohol is all that is needed to degrease each end. Heating the chuck and/or cooling the taper adaptor before putting them together can provide a more secure connection. A slight warming under a desklamp is all that is necessary. The heating technique is not necessary, but it does help the connection resist vibration.

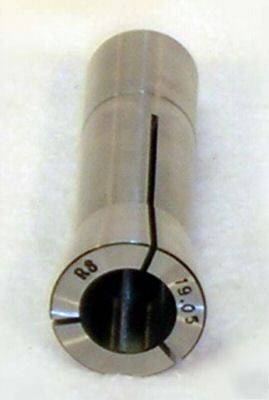

This is a special variation of a precision R8 collet. It is the common holder for all TTS tooling.
Complete operation manual for TTS is available at http:// /document_library/TTS%20operation%20manual%20Rev-C.pdf
