Ti-MSC1210EVM 8CH 24-bit adc-8051 flash microcontroller
For Sale: Ti-MSC1210EVM 8CH 24-bit adc-8051 flash microcontroller
Subject Ti-MSC1210EVM 8CH 24-bit adc-8051 flash microcontroller
Ad is submitted by poster:
The MSC1210 is a precision 24-bit delta-sigma Analog-to-Digital Converter (ADC) with an 8051 microcontroller, 1380 Bytes RAM and 32kBytes Flash Memory on chip. It has eight differential/single-ended analog input channels. It includes 32-bit accumulator, high-speed SPI interface, 16-bit PWM output, Dual UARTs, and dual DPTR registers. The MSC1210 has an enhanced 8051 core which only requires 4 clock cycles per machine cycle. It has extra timers, Watchdog, Brownout, Low-Voltage Detect circuits, Power Management Control, and hardware Breakpoint Registers.

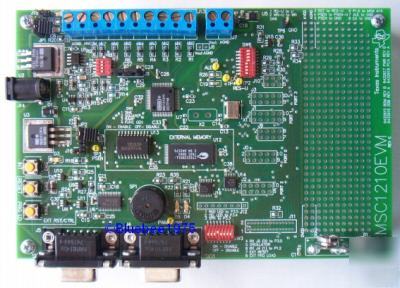

A prototyping area is provided on the MSC1210EVM. It additionally has 128kByte RAM, a SPI connected 16-Bit DAC, two RS232 interfaces with full Modem-Control, a Speaker, several LED's and Configuration Switches. Clock speed is 11.0592 MHz.
A 9V international power supply is included.
The Keil integrated software environment and the TI Downloader program make for a convenient system of program development, download, and execution.

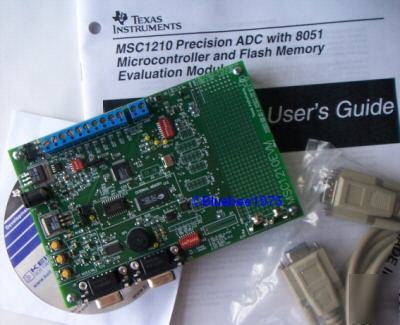

Full source code for the MSC1210EVM firmware is included on the CD.
The 24 page User's Guide SBAU073 includes detailed descriptions for starting and using of the MSC1210EVM
