Jet vertical milling machine R8 spindle 690082FREE ship
For Sale: Jet vertical milling machine R8 spindle 690082FREE ship
Subject Jet vertical milling machine R8 spindle 690082FREE ship
Ad is submitted by poster:

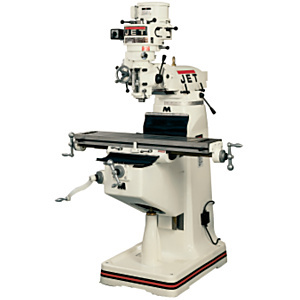

Jet -JTM-1 Vertical Milling Machine
JTM-1, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V Only
VERTICAL MILLING MACHINES - JTM-1/2 Meehanite casting
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Spindle head is internally cooled
Heavy-duty splined motor drive
One-piece quill pinion and shaft
Three-stage power downfeed with automatic stop
Precision hardened and ground ways
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Caution Jet's Step Pulley milling machine is the perfect solution for maintenance shops, repair shops, job shops, schools and light
production. Collet Capacity 1/8 – 7/8
Distance Spindle to Column (in.) 19
Distance Spindle to Column (min./in.) 4-1/2
Max Distance Spindle to Table ( in.) 17-1/2
Note Use of static phase converter will void warranty
Overall Dimensions 57 x 64 x 82
Quill Down feed Rates (IPR) .0015– .003–.006
Range of Spindle Speeds (RPM) 80 – 5,440
T-Slots Number and Size (in.) 3 and 5/8
Table Cross Travel (in.) 12-1/2
Table Longitudinal Travel (in.) 23-7/8
Work Table Weight Capacity (lbs.) 550
We require a physical address on all items
Ajax E-Bay store supplies the full line of JET Products.
Need any help looking please call.
