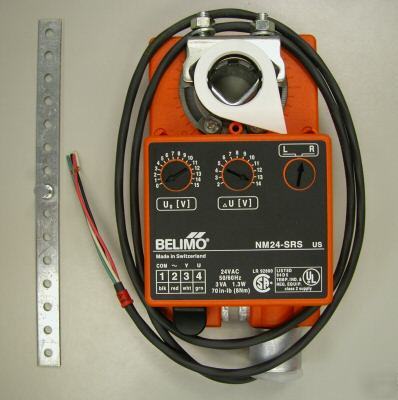

Belimo NM24-SRS Direct Coupled Damper Actuator Motor

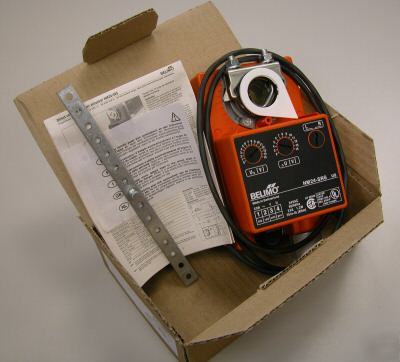

Brand New - In Box with Instructions and Mounting Strap
Power Supply - 24VAC, ±20%, 50/60Hz
Transformer Sizing - 3.5VA (Class 2 Power Source)
Control Signal 'Y' - 0...29VDC, 4...20mA, (with 500Ω, 1/4W Resistor)
Start Point 'U0' - Adjustable 0...15VDC
Working Span '∆U' - Adjustable 2...14VDC
Factory Settings - Startpoint 0VDC, Span 14VDC
Input Impedence - 100kΩ for 0...29VDC, 500kΩ for 4...20mA
Electrical Connection - 3 ft., 18GA, Plenum Rated Cable (Color Coded)
Torque (Note 1) - Min. 75in-lb (8Nm)
Damper Area (Note 2) - 19 sq. ft.
Direction of Rotation - Reversible with Switch "L-R"
Position Indication - Clip on Indicator
Angle of Rotation - 0-95° Adjustable Stops
Running Time (35-95°) - 150 Seconds Independent of Max. Angle of Rotation or Torque
Running Time (0-35°) - 0-150 Seconds Proportional to Max. Angle of Rotation (Note 3)
Humidity - 5 to 95% RH, Non Condensing
Ambient Temperature - -4 to +122°F (-20 to +50°C)
Storage Temperature - -40 to +176°F (-40 to +80°C)
Mounting Position - Not Sensitive to Position
Housing Material Rating - UL 94V-0 (Flammability Rating)
Mounting Strap - Anti-Rotation T-Type Included
Noise Level - Less than 35dB (A)
Agency Listings - UL 873 Listed Device, CSA 4813 02 Certified
Note 1 - Minimum torque is produced at minimum voltage, minimum temperature
Note 2 - Damper area is calculated using approximately 4 in-lb/sq.ft. of damper area. This is an average torque requirement for good quality dampers operating under a 1" WC pressure drop. Check damper specifications for exact torque requirements.
Note 3 - The on board microprocessor measures the actuator's full stroke on startup. It then adjusts the actuator speed to ensure 150 second run time for 35-95°. Below 35° stroke, the speed is constant and run time varies with rotation angle.
