8-dip switch microcontroller interface basic stamp pic
For Sale: 8-dip switch microcontroller interface basic stamp pic
Subject 8-dip switch microcontroller interface basic stamp pic
Ad is submitted by poster:

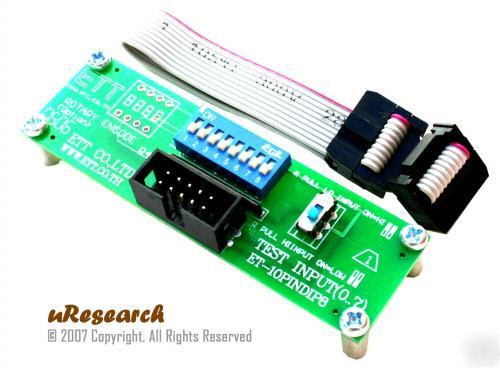

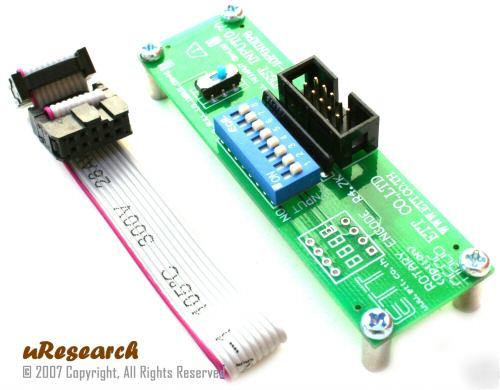

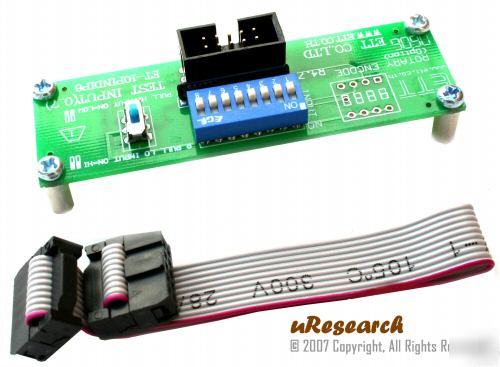

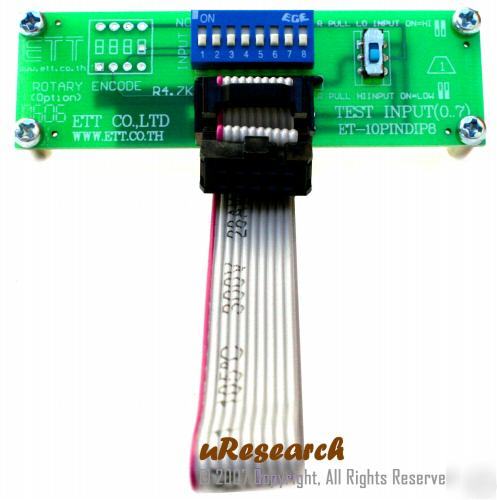

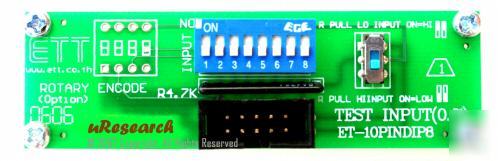

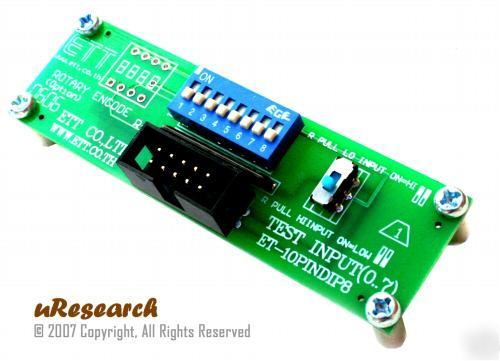

The board consists of eight position DIP switch. It can be easily configure as pulled-up or pulled-down input pins by moving the slide switch to appropriate position. The module is power by VCC pin from the 10PIN MRconnect©. It is small in size 3.30 x 1.00 inches.
“The module is sold fully assembled and testedâ€
· 10-PIN header, 0.100" centers (10PIN MRconnect© ready)
· Ribbon cable female to female (for header connection or change the gender)
For more information please see: MR-TEST-10P-8DIPSW User Manual
Items included for this action:
For more exciting products please visit WWW.MICRORESEARCH.US
