New Solution for Testing SMD Components
Professional High-Precision 100Hz-10KHz R-L-C Meter
SMD Identifier In a Set of Precise Gold-Plated Tweezers.
Now with Diode Polarity/Integrity Testing,
Improved Precision, Replaceable Tips and Pocket Clip Holder
Genuine Smart Tweezers as sold by Advance Devices
Directly from the manufacturer with 1-year Warranty, 30-day money back
Brand New, Factory-Fresh, Pre-Calibrated
Built-in high-precision LCR probe
Ideal for Surface Mount Devices
Convenient one-hand operation
Automatic component recognition
Automatic test range selection
Precise tips for small-size devices
Manual and voltage test modes
Diode Polarity/Integrity Check
Portable and ergonomic design

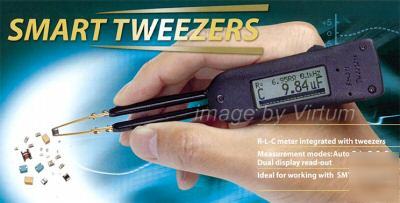

Smart Tweezersâ„¢ is a handheld LCR meter of a new concept.
It provides a perfect solution for testing and identification of Surface Mount Devices (SMD) as well as for troubleshooting of complex electronic systems.
Its unique mechanical and electronic design combines a pair of durable gold-plated tweezers and a digital LCR meter in compact, lightweight, battery powered instrument.
Handy Tool for Tiny SMD Components
Surface mount devices are usually tiny and without wire leads, making it more difficult to test and identify SMD than conventional components.
Smart Tweezersâ„¢ gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging.
Precise gold-plated tips made of non-magnetic steel are able to pick and reliably contact even smallest SMD components (as small as 0201 format) or take measurements from the devices already mounted on a board. The probe can also be used to test conventional components with wire leads too short to insert into the test terminals.
Smart Tweezersâ„¢ greatly simplifies
testing and troubleshooting process
Automatic Component Recognition
Smart Tweezersâ„¢ automatically determines type of the component (resistance, capacitance or inductance), selects proper range and signal frequency for highest accuracy measurements. Manual overrides are available as well.
Unit’s display clearly indicates the type of the component, measurement result and test conditions. The primary display shows the present reading. The secondary display (on top) shows the present reading of additional parameters or measurement conditions when the primary display shows some other feature (L, C).
When multiple features present, the secondary display shows one of the values. The Bar Graph provides an analog indication of the measured input.
Resistance, capacitance and inductance can be measured with automatic selection of the test parameters and test range.
Default settings can be modified by navigating a set of menus with the Jog Dial button.
Meter's display can be easily flipped from the menu for left-handed use.
Ergonomic Design and Convenient Controls
Voltage Measurement, Continuity/Open Test
Smart Tweezersâ„¢ features dual mode voltmeter function. In the AUTO mode, the DC voltage is measured. In the TRACE mode waveform of the AC signal is shown.
The unit has a continuity detector with the beeper sound for resistance reading below threshold.
Smart Tweezersâ„¢ can test diode polarity and indicate if the diode is short.
The unit can be used as a voltmeter measuring DC voltage and tracing AC signal.
Polarity and integrity of a diode can be verified by Smart Tweezers
0 %-90 % (0 °C to 35 °C) 0 %-70 % (35 °C to 55 °C)
3 x 1.5V LR44 Alkaline or Air Zinc
80 Hours typical with alkaline,
240 hours with air zinc battery
Electromagnetic Compatibility (EMC):
14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in)
4, 2, 1, 0.5 times per second (default 1)
0 to 800 mV (up to 8V with manual setting)
1 pF to 4999 μF (1pF - 5pF in manual mode)
1μH to 499mH (1μH -4μH in manual mode)
specified at 18°C-28°C (64°F-82°F), relative humidity to 90%.
1% + 0.02 in the range 10Ohm - 5MOhm
*Typical offset 1.6pF for 0402 size component
0.1μH in the range 1μH - 100μH
**Typical offset 1.4μH for 0402 size component
Warranty: 1 year from the purchase date. Advance replacement option is available.
USA - FREE (Expedited Service)
Most other countries - US$37.50 by EMS
Canadian sales are subject to 6% GST or 14% HST (NS,NB,NFL)
Sales in Ontario are subject to 8% PST
