> New fiber optic visual fault locator, sc/st/fc/E2K ,
New fiber optic visual fault locator, sc/st/fc/E2K ,
For Sale: New fiber optic visual fault locator, sc/st/fc/E2K ,
Subject New fiber optic visual fault locator, sc/st/fc/E2K ,
Ad is submitted by poster:

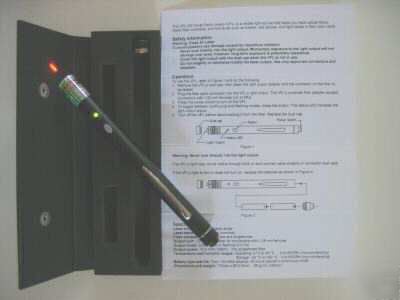

Fiber Optic Fault Locator (2.5mm)
For immediate purchse please go to my Store.
This unit is optimized for Singlemode and Multimode fiber testing. Accepts all connectors with a 2.5mm ferrule (SC, ST, FC, E2000). Unit is new with 1 year warranty.
Built in LED indicates the operational states. (ON / OFF, Continuous / PULSE, low battery indicator). Non contact interface will not scratch the connecting ferrule.
* For locating breaks and bends in fibers and identifying connectors at the panel.
* Patented non contact interface the ferrule will not be scratched.
* Visual Fault Locator is equipped with a 650-nm visible laser diode
* Can be operated in continuous or pulse modes for clear noticeable results.
* One green LED indicator shows the operating mode .
* Power switch on the end for battery on / off .
* Push button operate CW / Mod. (2.5 Hz frequency) / pulse.
* Clip pocket-size pen design.
* Protective cap for extra protection.
* New battery low indicator. (40 hrs of continuous operation, under normal conditions)
2 AAA Batteries provide 40 hrs of continuous operation
Central Wavelength 650 +/- 10 nm
Output Power 1mW into Single-mode fiber
Transmission CW or 2.5 Hz pulse
Batteries 2 x AAA Alkaline batteries
Dimension / Weight 13.5 mm X 170 mm / 88 g
Light Source Class 3A laser diode
