Metallurgical microscope 1600X metalograph + 2MP camera
For Sale: Metallurgical microscope 1600X metalograph + 2MP camera
Subject Metallurgical microscope 1600X metalograph + 2MP camera
Ad is submitted by poster:

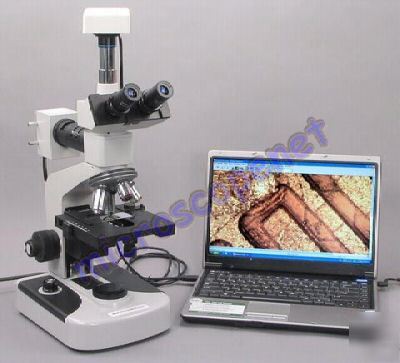

MetallurgicalTrinocular Microscope
40x~1600x with 2MP USB2.0 Camera
Find it later under"Favorites" menuin your browser.
This microscopeis designed for the specimens/slides that arenot transparent. In this case, the optical systemis not able to receive the transmitted lightsfrom the bottom so the reflected EPI lightingsystem is introduced. The light goes down throughthe objective and reflected by the specimen andtravels back to eyepieces and camera(if mounted)through the same objective. Unlike other metallurgicalmicroscopes on the market, this one has a quaduplenosepiece, instead of a triple nosepiece. It alsocomes with 5 high quality PLAN field achromaticobjectives (the top level of objectives) whichprovide up to 1600x magnification. It gives youwide range of the magnifications and more flexibilities.The long vertical focusing travel distance (2")and large stage movement range allow thick andlarge specimens. It also has a photo port/tubeto accomodate cameras for the computers or themonitors. The power supply is 100v-240v universalfor worldwide use. This microscope is perfectfor metallurgical and electronic industries.
The package comeswith a high resolution 2MP high speed USB 2.0camera. You may hook it up on any computers withWindows 98/Me/2000/XP/Vista. You can see livemotions or take pictures by just a click. Youcan also measure the angles, distances, and radiusesof the objects you select. The camera has a 1/2"sensor chip and a 0.5x reduction lens to providethe large field of view.
* High qualityprofessional optical glass elements
* 30°inclined360°rotatable trinocular head
* 2MP USB 2.0camera (electronic eyepiece) included
* Compatiblewith Windows 98/Me/2000/XP/Vista
* Software supportsmeasurement of angles, distances, and radiuses
* 10 levels ofmagnification: from 40x to 1600x
* 5 plan fieldachromatic objectives DIN 4x, 10x, 40x(S), 63x(S),100x(S,Oil)
* 2 pairs ofeyepieces: WF10X and WF16X
* Sliding interpupillarydistance adjustment
* Both left andright adjustable ocular diopter
* Brightnessadjustable EPI reflected lighting system
* Adjustableaperture diaphragm
* Convenientfield diaphragm centering thumb screws
* 3 color (yellow,green, blue) filters included
* Extremely highresolution sharp images over a wide field view
* All metal mechanicalcomponents
* Coaxial coarseand fine focus adjustment with adjustable tensioncontrol
* Focusing knobson both sides
* Long focusingtravel distance (vertical stroke) for thickspecimens
* Large stain-resistantdouble layer stage
* 3 metal stageplates included
* Worldwide universalvoltage range
* Manufacturerin business 30+ years
* Head: 30°Inclined360°rotatable trinocular
* Eyepieces:wide field WF10X and WF16X
* Objective:plan field achromatic DIN 4x, 10x, 40x(S), 63x(S),100x(S, Oil)
* Total magnification:40x-64x-100x-160x-400x-630x-640x-1000x-1008x-1600x
* Reflected illuminator:6V/20W halogen
* Large stain-resistantdouble layer stage 5-1/2" x 5-1/2"(140mm x 140mm)
* Large stagemoving range: 2-13/16" x 1-17/32"(72mm x 40mm)
* Stage verticalstroke (focusing travel distance): 2" (51mm)
* Metal stageplate dimension: 3-1/8" x 1-9/16"(80mm x 40mm)
* Focus adjustment:Coaxial coarse& fine knobs on both sideswith adjustable tension control
* Camera pixels:2MP (1600x1200)
* Camera sensorchip size: 1/2"
* Power supply:100V-240V, 50/60Hz universal (US and Canadaplug)
* Dimension:12" x 8" x 19" (30.5cm x 20.3cmx 48cm)
* Net weight:18lb 10oz (8.5kg)
* Trinocularmetallurgical microscope
* 5 plan fieldachromatic objectives: 4x, 10x, 40x(spring),63x(spring), 100x(spring, oil)
* Eyepiece: apair of WF10X and a pair of WF16X
* 2MP USB 2.0Camera with reduction lens
* Camera adapterfor stereo microscopes
* Power cord(US and Canada standard)
* 3 color filters,yellow, green, blue
* Extra halogenbulb (6V/20W)
OptionalParts and Accessories (sold separately):
Note:Before you purchase any parts or accessories,please check theCompatibilityTablebelow.
Clickthe button above to view the list of parts and accessoriesfor this productV83MC20
Q:Howdo I select a microscope which fits my needs?
A:You may getsome basic knowledge from ourPurchaseGuide
Q: I sent you an email but haven't got you answer for morethan 24 hours.
A:This may bedue to email spam filters or other restrictions. Pleaseread this important message:AboutCommunication
