Hobart battery charger-AC1000 charger control
For Sale: Hobart battery charger-AC1000 charger control
Subject Hobart battery charger-AC1000 charger control
Ad is submitted by poster:

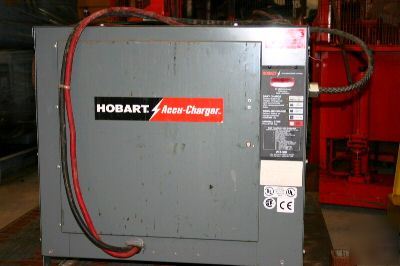

HOBART BATTERY CHARGERS, PRESTOLITE ELECTRIC
[This Item Is A Few Years Old, But In Good Condition]

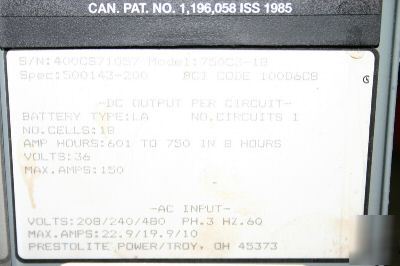

S/N: 400CS71057, MODEL: 750C3-18, Spec: 500143-200, BCI CODE 100D6C8, DC OutPut per Circuit, Battery Type: LA, NO. Cells:118, Amp Hours: 601 To 750 in, 8 Hours, Volts:36, Max. Amps: 150, AC Input, Volts: 208/240/480, Ph.3 Hz. 60, Max. Amps: 22.9? 19.9/0, Prestolite Power/Troy. OH.
MAIN FEATURES FOR AC1000 CONTROL
* 30 Minute PDV/DT Charge Termination
* Four LEDs for Status Display; LED lamp test provided
* Review of Charger Cycle Information
* Amp hours returned during charge cycle
* Start current, Start voltage
* Finish Voltage, Charge termination code
* Automatic, Push-to-Start, or Fault lock-out Operation
* Manual or Automatic Equalize Operation
* Dual Back-up Timer Shutdowns
* One Part Number Control is User/Factory programmable for 6-12-18-24-36 Cells and 100-200-400 Amp Digital Ammeter
* 8-99 Hour Programmable Refresh Charge
* Voltage Time Feature (PDV/DT Disable)
* Low Current Shutdown Disable
* Digitally Adjustable 80% Point
* Programmed Features maintained for a minimum of 10 year
* 3 Programmable Start Modes, Automatic Start(5 Second Delay)
Dimensions 20" length x 24" width x 20" height, weight 298 lbs(+).
Established and Reputable Business Owner for over Twenty Years
Return Policy: We will except a return within 30 day, but will not cover freight either way. Item must be returned in same condition as sent.
