Hakko fm-202 future module soldering station
For Sale: Hakko fm-202 future module soldering station
Subject Hakko fm-202 future module soldering station
Ad is submitted by poster:

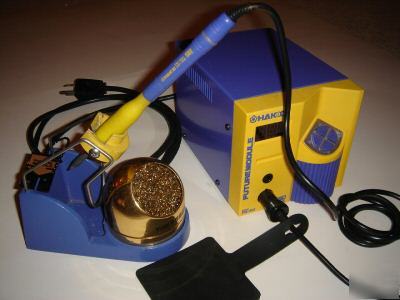

Hakko FM-202 Future Module Soldering Station
Each station was turn on and runs properly.
Here´s a powerful soldering station that delivers the heat you want to the soldering area FAST!
Process control allows you to select the soldering temperature you want, without changing the tip - one tip, any soldering temperature! Four buttons on the front let you further adjust tip temperature to specific applications. Replaceable ergonomic grip. LED in handpiece stays illuminated when iron is hot. Unit can be programmed to shut off after 30 minutes of inactivity, and more.
* Unique cartridge and soft grip design allows cartridges with different tips and removable ergonomic grips to be quickly and easily replaced
* Tip is automatically programmed to accurate tip temperature setting simply by inserting it into the process gate
* Tip is registered at the factory and automatically read by the station when inserted into the process gate
* Tip temperature can be changed without changing the tip
* More than 75 T7 tip configurations available
* Once the tip temperature setting and process parameters are set, they are "locked" into the system memory and they cannot be changed without the lockout key card
* Red ring LED in connector stays illuminated when the iron is hot
* Signal display reads °C or °F
Power Consumption: 75W (Max. 140W)
Temperature Range: 200°C - 450°C (400° - 840°F)
Temperature Accuracy: ±10°C (±18°F)
Temperature Stability: ±5°C (±9°F) at idle temperature
Station Dimensions: 7" x 4.7" x 4.2"
Soldering Iron Power Consumption: 70W (24V)
Tip-to-Tip Ground Resistance: Under 2Ω
Tip-to-Tip Potential: Under 2mV
Total Length w/o Cord: 7.4" with T7-D24 tip
Weight w/o Cord: 1.07 Oz. with T7-D24 tip
Dimensions: 7"L x 4.7"W x 4.2"H
