Cincinnati-milacron 6-spindle airfoil blade mill 22127
For Sale: Cincinnati-milacron 6-spindle airfoil blade mill 22127
Subject Cincinnati-milacron 6-spindle airfoil blade mill 22127
Ad is submitted by poster:

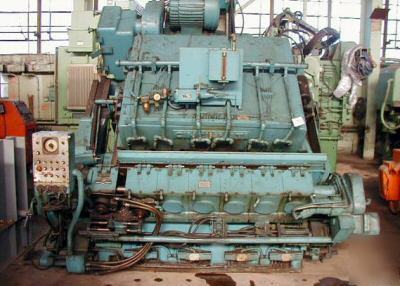

CINCINNATI-MILACRON 6-SPINDLE AIRFOIL BLADE MILL
New 1966, Serial No 65-426-R-214-1
(6) Workheads And One Master Head All Mounted
At 5-Degree Angle Relative To Cutter Spindle Axis
Power Down Feed Of Spindle Carrier Coordinated
Active Airfoil Length, Maximum......... 24"
Blade Length Overall, Maximum.......... 28"
Airfoil Chordal Width, Maximum......... 5"
Distance Between Work Spindle Centers.. 10"
Distance Between Cutter Spindles....... 10"
Spindle Carrier Travel, Down........... 24"
Distance Spindle Nose To Tailstock, Max 28.5"
Quill Adjustment....................... 1"
Spindle Taper.......................... #50 NSTD
Useable Cutter Diameter, Maximum....... 4"
Useable Cutter Diameter, Minimum....... 7/8"
(16) Spindle Speeds, Range............. 40 to 1450 RPM
Workhead Speed Range, Inf Var.......... 0 to 5 RPM
Masterhead Speed Range, Inf Var........ 0 to 5 RPM
Work & Master Feed Rates, Range........ .008 to .100 IPR
Spindle Carrier Rapid Traverse......... 60 IPM
Spindle Motor Horsepower............... 30 HP
Hydraulic Motor Horsepower............. 10 HP
Electrical System...................... 440/3/60
PRICE: REDUCED FROM................... $69,500.00
PRICE: F.O.B. OUR WAREHOUSE............ $5,950.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Becky Moses
Contact: B_moses@repair--parts.com (Becky Moses) (this is a temporary forwarding address).
