6' x 60 ton wysong cnc hydraulic press brake
For Sale: 6' x 60 ton wysong cnc hydraulic press brake
Subject 6' x 60 ton wysong cnc hydraulic press brake
Ad is submitted by poster:

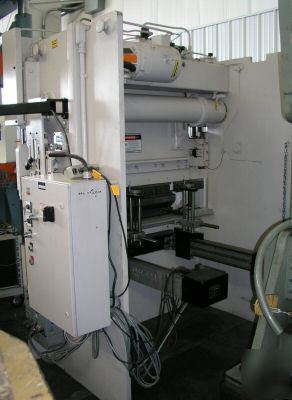

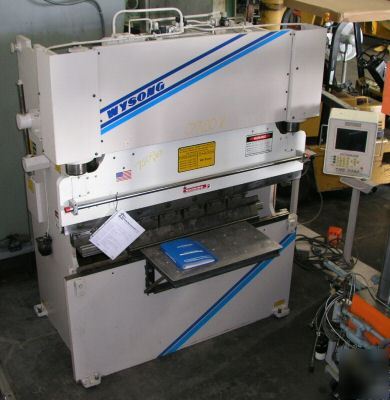

6' X 60 TON WYSONG CNC HYDRAULIC PRESS BRAKE
Serial # MT1-176 New 1997 Model # MTH60-72
Rated Capacity: 6' of 10 Ga. Mild Steel

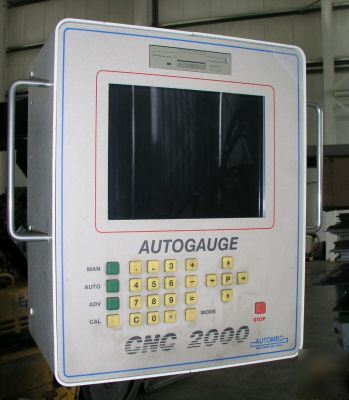

Automec CNC 2000 Control, Serial #12966456
Control is for Single Axis Back Gage In and Out as Well as Ram Control
(2) Fingers on Back Gage that are Manually Adjustable for Position Left and
Port Storage: 1.000 Ports on Floppy and 10.000 Ports on Hard Memory
Hand Wheel Graduated in .001" for Raising and Lowering of Ram
Adjustable Top Stop and Bottom Stop
Adjustable Speed Change Control for Cycle, Advance Speed, Press and Return
Adjustable Pressure Valve with Gage
Keyed Switch for Using (1) or (2) Pendant Stations

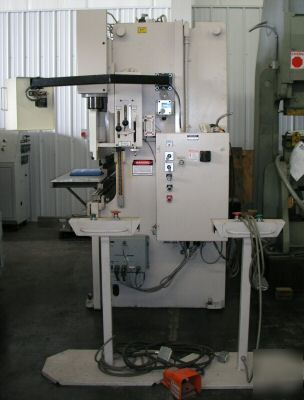

(2) Moveable Palm Button Pendants
Flat Machined Bed with Clamps for Holding Die Blocks

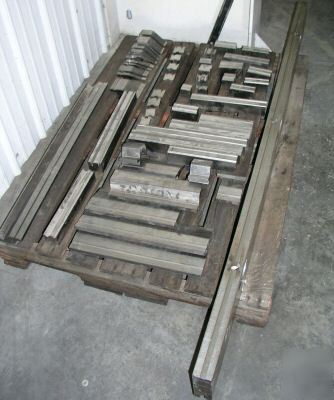

(2) 32-3/4" Wilson Tool Die Blocks with T-Slots Perpendicular to Bed
72-1/4" Long Die Holder with Machined Tang
(7) Wilson Tool Upper Die Clamps
Wired for 3 Phase, 60 Cycle, 208/230-460 Volts
Overall Size Machine: 87" L-R x 70" F-B x 90" H x 7,500 Lbs.
Overall Size Pendants: (2) 30" L-R x 16" F-B x 36" H
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Ruby Foreman
Contact: R-foreman@repair--parts.com (Ruby Foreman) (this is a temporary forwarding address).
