30" excello #30-827 optical comparator 17550
For Sale: 30" excello #30-827 optical comparator 17550
Subject 30" excello #30-827 optical comparator 17550
Ad is submitted by poster:

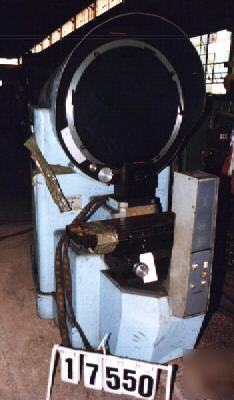

30" EXCELLO #30-827 OPTICAL COMPARATOR
New 1968, Serial No 8270090, Model 30-827
Power Vertical Table Elevation
Screen Diameter............................ 30"
Table Dimensions, W x L.................... 8" x 32"
Measuring Range, Horizontal................ 12"
Measuring Range, Vertical.................. 10"
Measuring Range, Angular................... 360 Degrees
Collimator to Focal Plane.................. 9.5"
Focal Plane to Front Mirror Housing........ 8"
Throat Clearance........................... 17.5"
Weight, Approximately...................... 3500 LBS
PRICE: F.O.B. OUR WAREHOUSE................ $1,000.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Joe Waters
Contact: Joewaters@repair--parts.com (Joe Waters) (this is a temporary forwarding address).
